Figure Caption

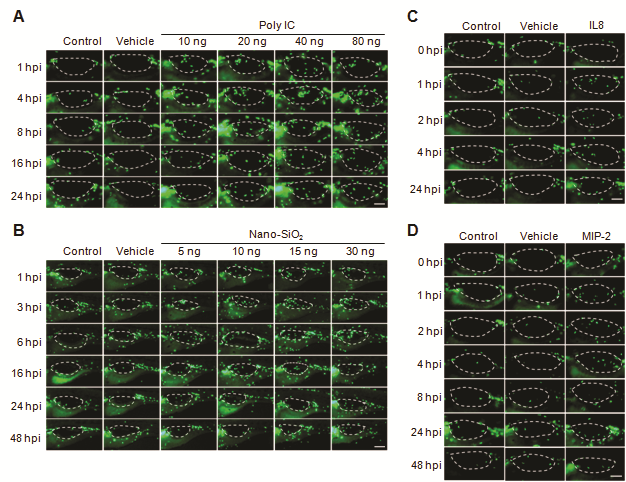

Fig. S1
Exogenous stimuli trigger neutrophil recruitment into zebrafish swim bladders. Neutrophil recruitment to exogenous materials [Poly IC (A), Nano-SiO2 (B), IL8 (1 ng) (C), MIP-2 (2 ng) (D)] that were injected into the swim bladders (indicated by dotted line) of Tg(mpo:GFP) zebrafish larvae at 5 dpf was monitored (green, neutrophil; scale bar: 100 μm).
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Cell Death Dis.
