Figure Caption

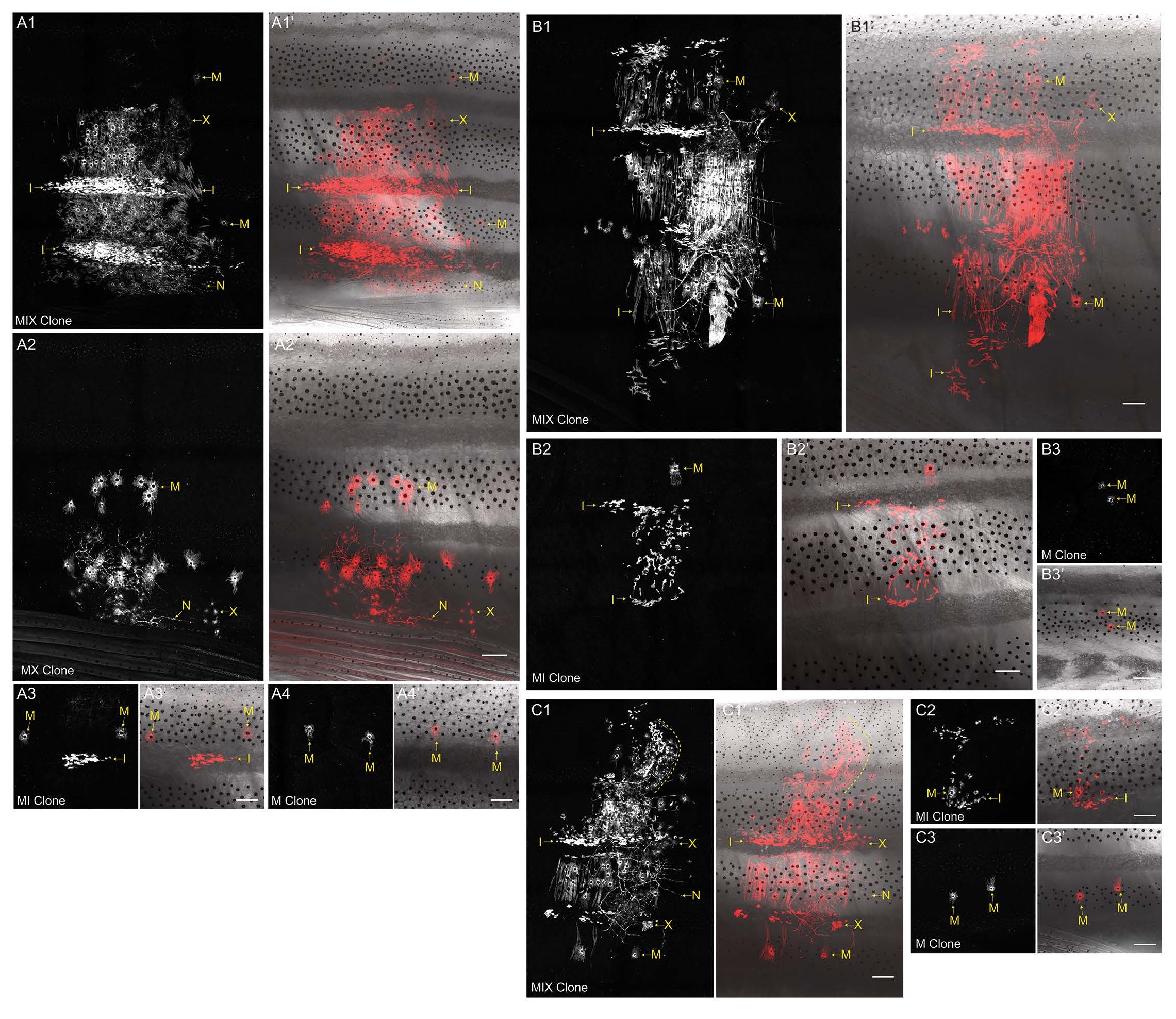

Fig. S5
Clones with labeled melanophores obtained from Cre-activation.
(A1-A3′) Cre-activation at 16 hpf. (A1-A1′) MIX clone, (A2-A2′) MX clones, (A3-A3′) MI clone, and (A4-A4′) M clone. (B1-B3′) Cre-activation at 15 dpf. (B1-B1′) MIX clone, (B2-B2′) MI clone, (B3-B3′) M clone. MX clones are not shown. (C1-C3′) Cre-activation at 21 dpf. (C1-C1′) MIX clone, (C2-C2′) MI clone, (C3-C3′) M clone. N: nerves; M: melanophore; I: iridophore, X: xanthophore. Scale bars = 250 µm.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Developmental Cell, 38(3), Singh, A.P., Dinwiddie, A., Mahalwar, P., Schach, U., Linker, C., Irion, U., Nüsslein-Volhard, C., Pigment Cell Progenitors in Zebrafish Remain Multipotent through Metamorphosis, 316-30, Copyright (2016) with permission from Elsevier. Full text @ Dev. Cell
