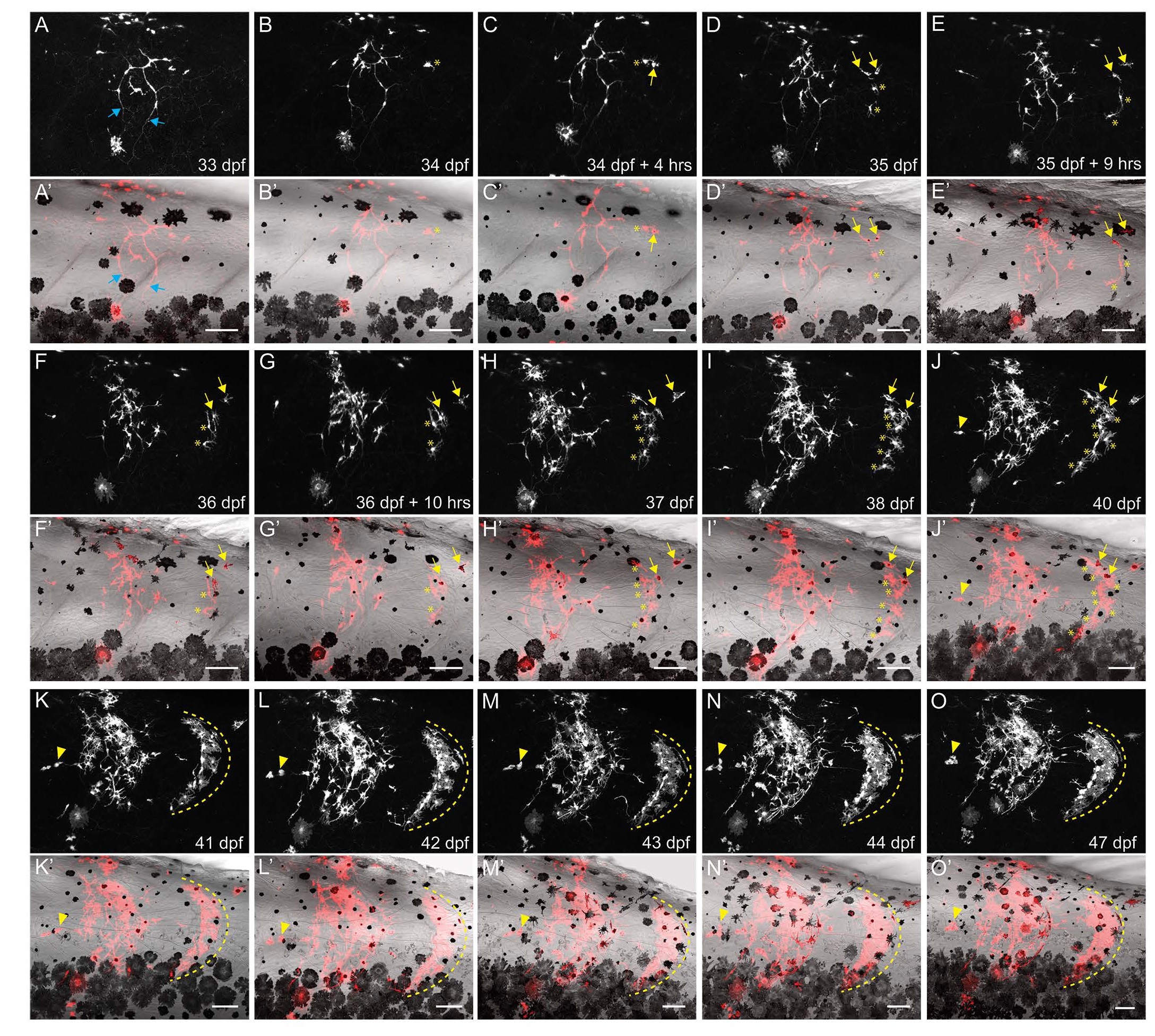

Fig. S3

Nerve-associated progenitors make scale pigmentation.

(A-O′) Repeated imaging of a clone induced on 5 dpf in zebrafish carrying Tg(sox10:ER^T2-Cre) and Tg(βactin2:loxP-STOP-loxP-DsRed-express) reveal production of scale pigmentation from nerve-associated progenitors that produce pigment cells of the body. Blue arrows: neuronal branches; yellow arrows: scale melanophores and their progenitors; asterisks: undifferentiated progenitors that produce scale xanthophores; arrowheads: iridophores; dpf; days post-fertilization. Dashed lines indicate pigment cells of a scale. Panels (A-D′) are reproduced from Singh et ai, 2014. Scale bars = 100 µm.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 38(3), Singh, A.P., Dinwiddie, A., Mahalwar, P., Schach, U., Linker, C., Irion, U., Nüsslein-Volhard, C., Pigment Cell Progenitors in Zebrafish Remain Multipotent through Metamorphosis, 316-30, Copyright (2016) with permission from Elsevier. Full text @ Dev. Cell
