Figure Caption
Fig. 4

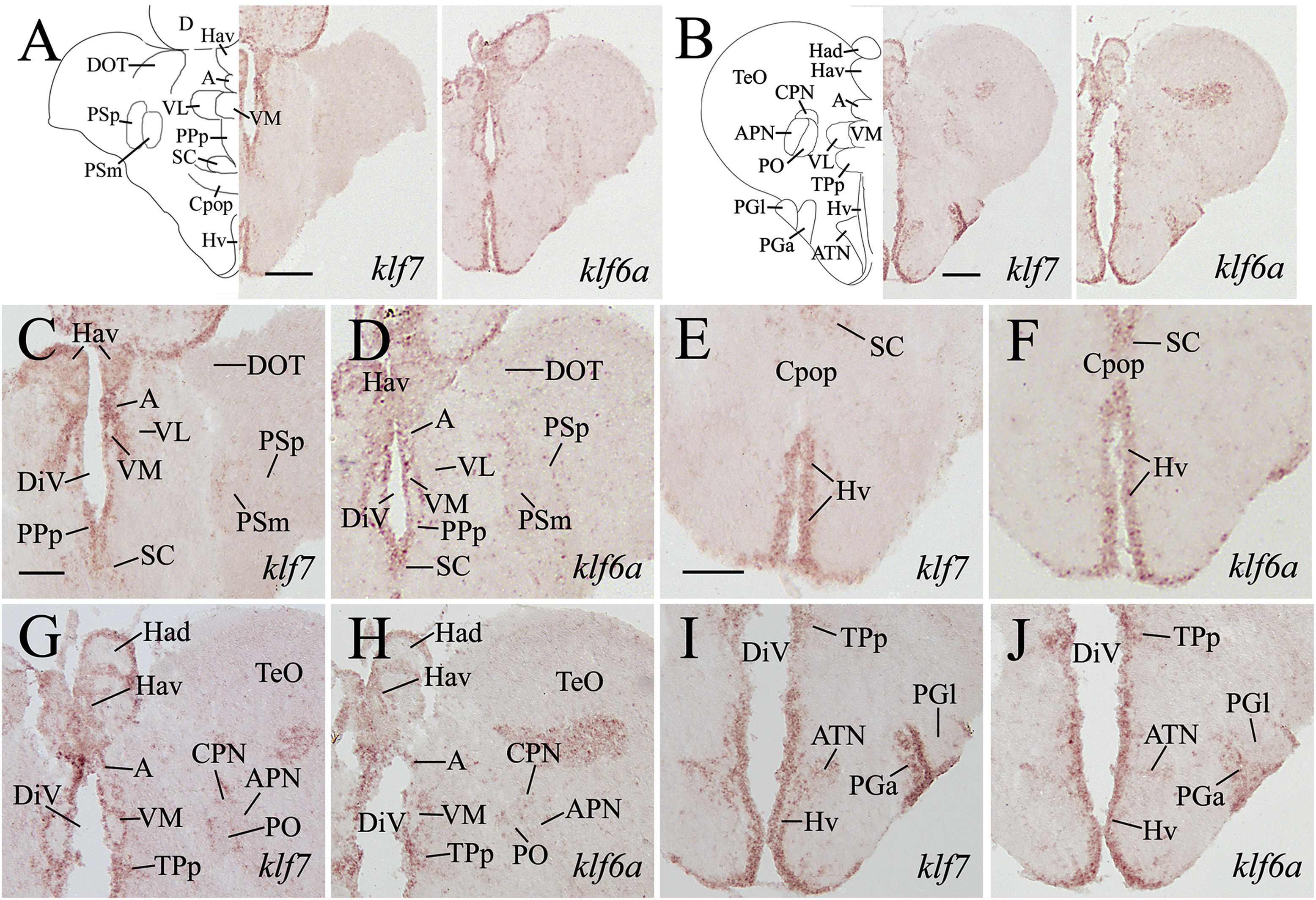

Expression of klf7 and klf6a in the preoptic, habenular, pretectal regions and diencephalon of the adult zebrafish brain. Images in the top panels are low magnified views of halves of brain sections from levels shown in Fig. 1. Panels C, D, G and H (same magnification) are higher magnifications of the dorsomedial portion of their respective images in the top panels, while panels E, F, I and J (same magnification) are ventral halves of their corresponding images in the top panels. See list for abbreviations. Scale bar = 200 µm for the top panels, 50 µm for the remaining panels.
