Fig. 3

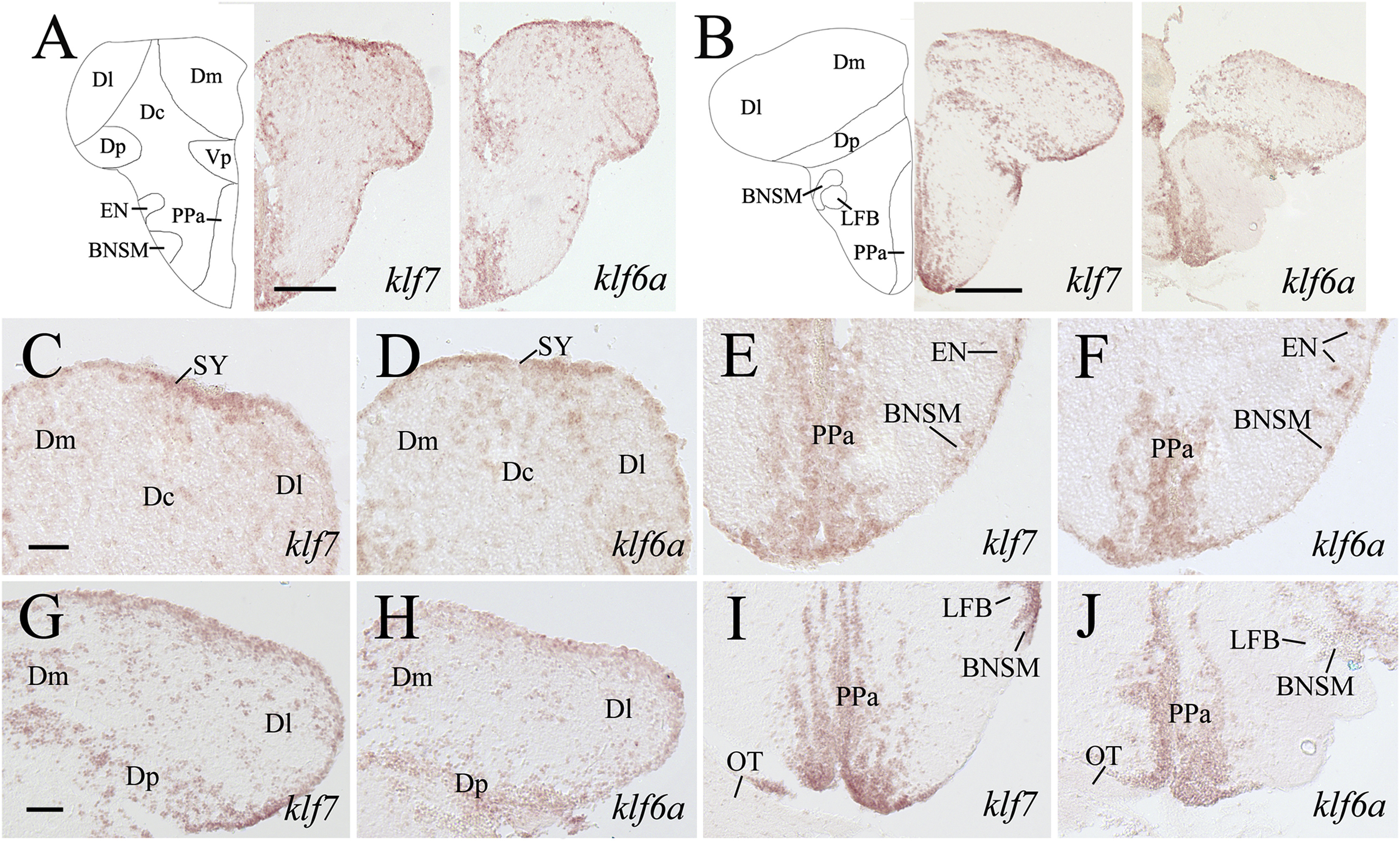

Expression of klf7 and klf6a in telencephalon at post anterior commissure levels. Top panels show low magnified views of halves of the brain sections, while the remaining panels show higher magnifications of the dorsal (panels C, D, G and H) or ventral (panels E, F, I and J) portions of their respective images in the top panels. See list for abbreviations. Scale bars = 200 µm for top panels, and 50 µm for the remaining panels. Images in the middle and bottom rows have the same magnifications, respectively.
