Fig. 2

ID: ZDB-IMAGE-160909-2
Publication: Noonan et al., 2016 - Loss of vhl in the zebrafish pronephros recapitulates early stages of human clear cell renal cell carcinoma
All Figures: Figures for Noonan et al., 2016


Figure Caption

Fig. 2

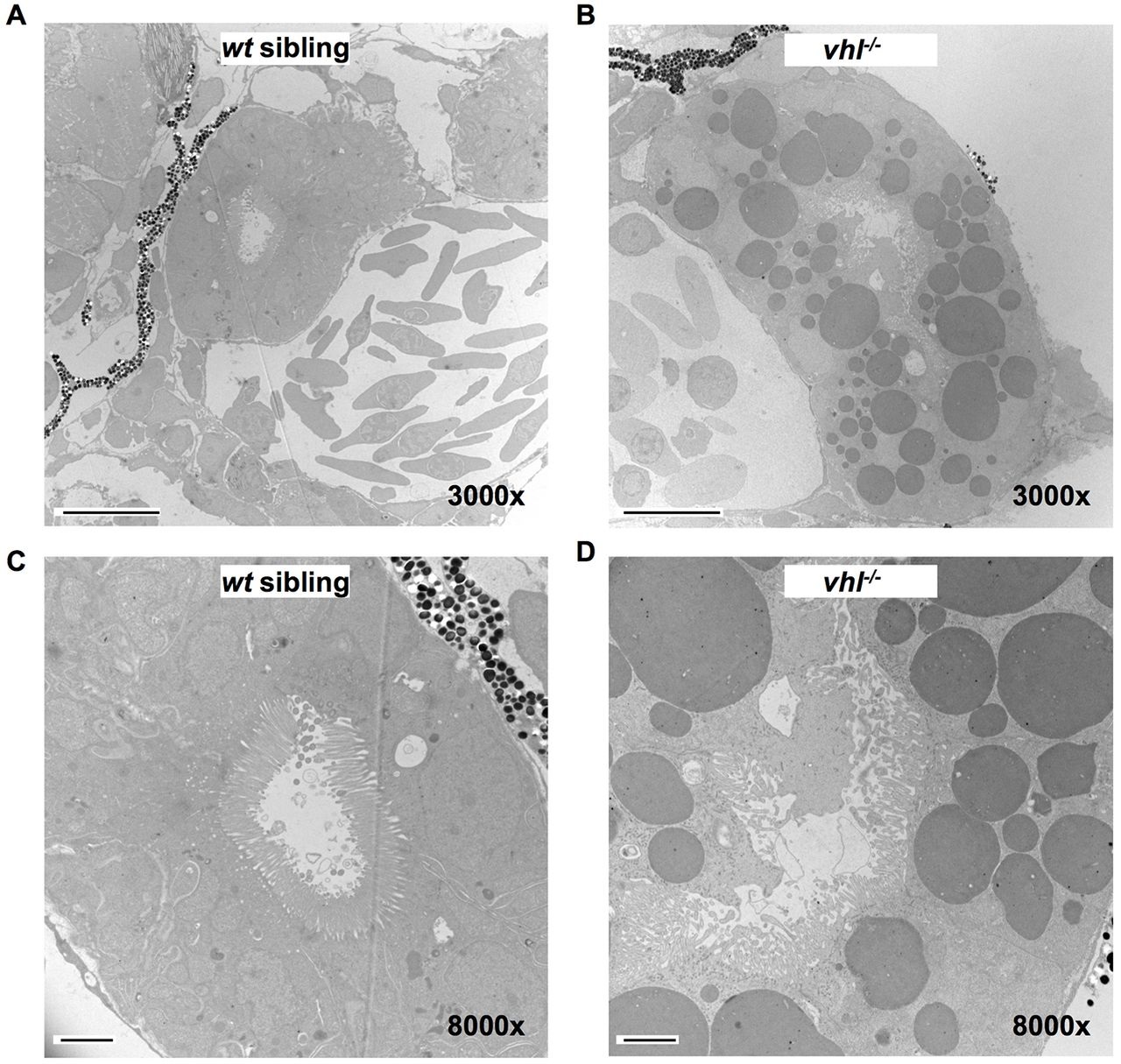

TEM confirms that proximal vhl^-/- pronephric tubules have an increased tubule diameter, a distorted lumen, disorganized cilia and contain cytoplasmic lipid vesicles. 5.5dpf vhl^-/- and wt siblings were fixed, embedded and sectioned. Thin sections were stained with electron-dense metals and electron microscopy was performed. Transmission electron micrographs of proximal vhl^-/- pronephros (B,D) in comparison to wt sibling (A,C). Scale bars: 10µm (A,B); 2µm (C,D).
