Figure Caption
Fig. 7

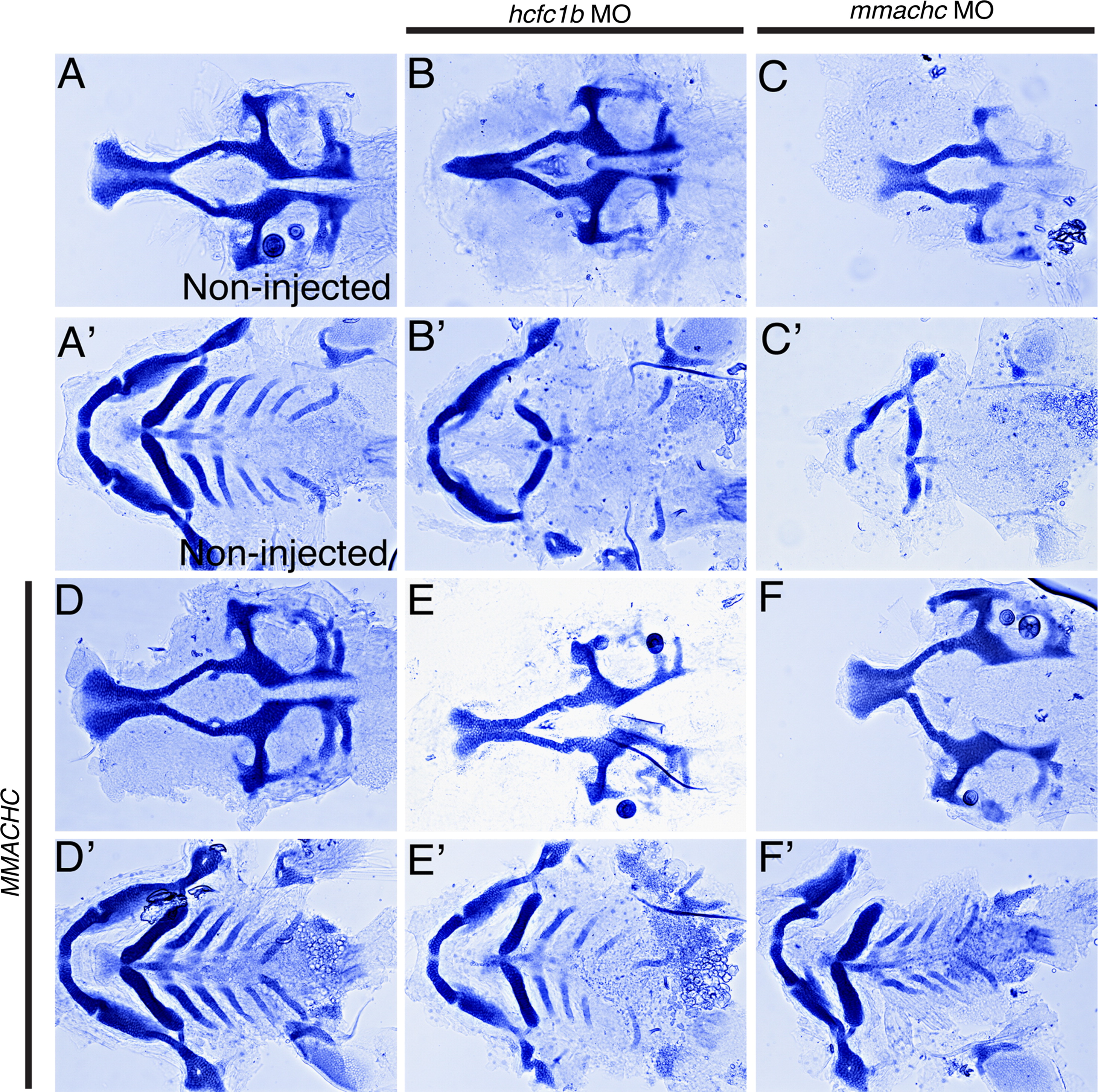

Craniofacial defects associated will loss of hcfc1b are mediated through mmachc expression. (A-F) Staining of cartilage with Alcian blue in non-injected (NI), hcfc1b morphants (hcfc1b MO), mmachc morphants (mmachc MO), human MMACHC mRNA, hcfc1b MO co-injected MMACHC mRNA, or mmachc-MO injected with MMACHC mRNA. Numbers of animals are listed in Appendix A. Embryos were stained at 4 days post fertilization and manual dissection of the viscerocranium and neurocranium was performed. Neurocranium is depicted in A-F and the viscerocranium is depicted in A′-F′.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Developmental Biology, 396(1), Quintana, A.M., Geiger, E.A., Achilly, N., Rosenblatt, D.S., Maclean, K.N., Stabler, S.P., Artinger, K.B., Appel, B., Shaikh, T.H., Hcfc1b, a zebrafish ortholog of HCFC1, regulates craniofacial development by modulating MMACHC expression, 94-106, Copyright (2014) with permission from Elsevier. Full text @ Dev. Biol.
