Fig. 7

ID
ZDB-IMAGE-160727-42
Genes
Source
Figures for Maulding et al., 2014
Figure Caption

Fig. 7

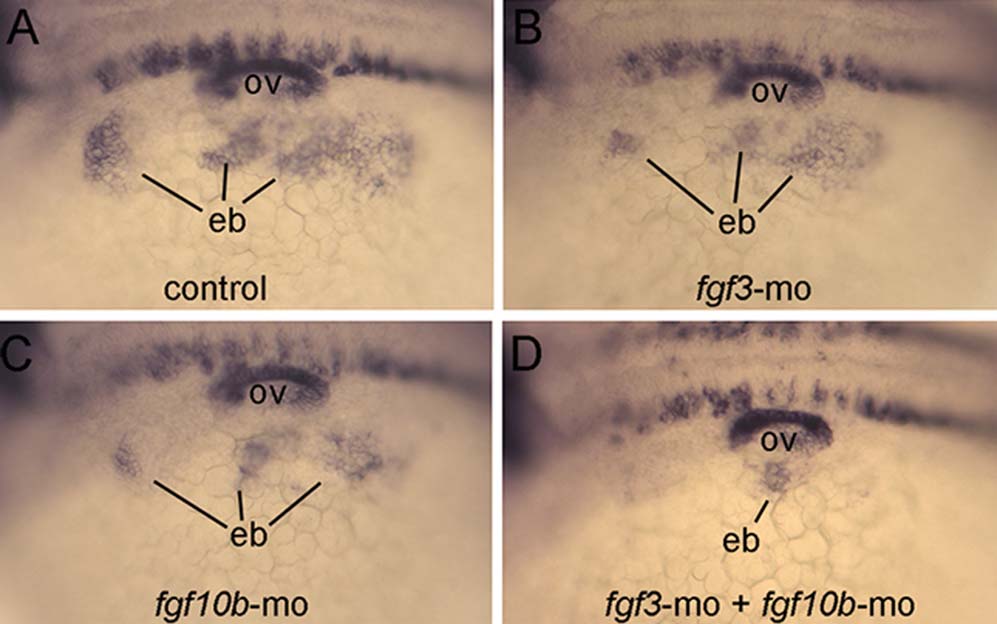

Loss of epibranchial expression of pax2a in fgf3-fgf10b deficient embryos. A-D: Lateral views (anterior to the left) showing expression of pax2a in the otic vesicle (ov) and nascent epibranchial placode (eb) at 24 hpf. Compared with a control embryo (A), knockdown of fgf3 (B), or fgf10b (C) causes moderate deficiencies in epibranchial placodes, whereas knockdown of both fgf3 and fgf10b nearly abolishes the epibranchial domain (D).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dev. Dyn.
