Figure Caption
Fig. S1
Murc conservation and expression in zebrafish.

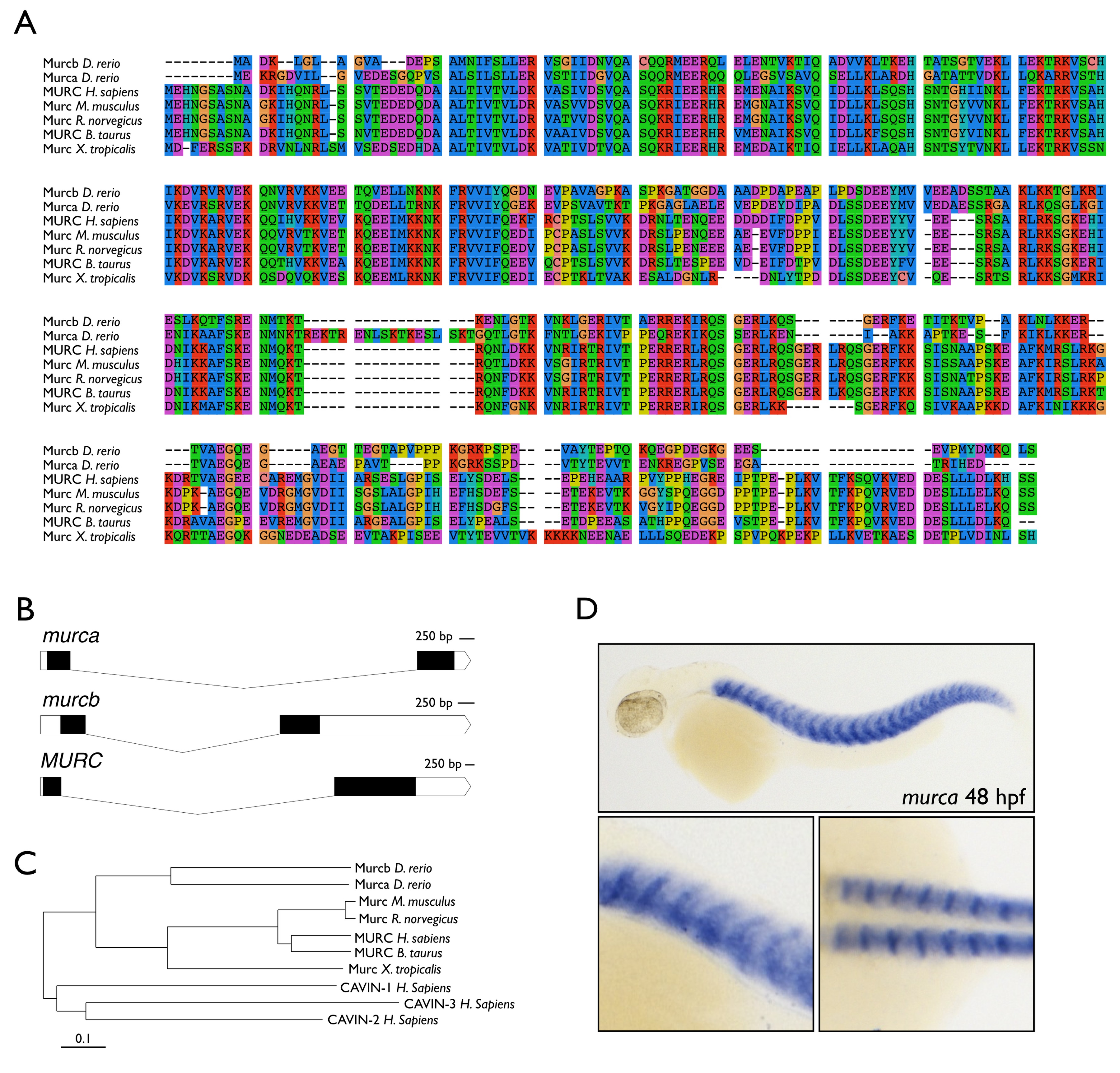

A. Protein alignment of zebrafish Murca and Murcb with human, mouse, rat, cow, and Xenopus orthologs. B. Zebrafish murc genes share a similar intron-exon structure with human MURC having two exons and a single intron. White boxes represent UTRs. C. Phylogenetic analysis of zebrafish Murca and Murcb. D. Whole mount in situ hybridization of murca mRNA in zebrafish embryos at 48 hpf. Top: lateral view. Bottom left: magnified lateral view. Bottom right: magnified dorsal view.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ PLoS Genet.
