Figure Caption

Fig. S5

Cell Permeabilization Triggers INM Translocation of cPla₂-mK2 in Zebrafish Larvae Irrespective of Bathing Osmolarity, Related to Figure 5

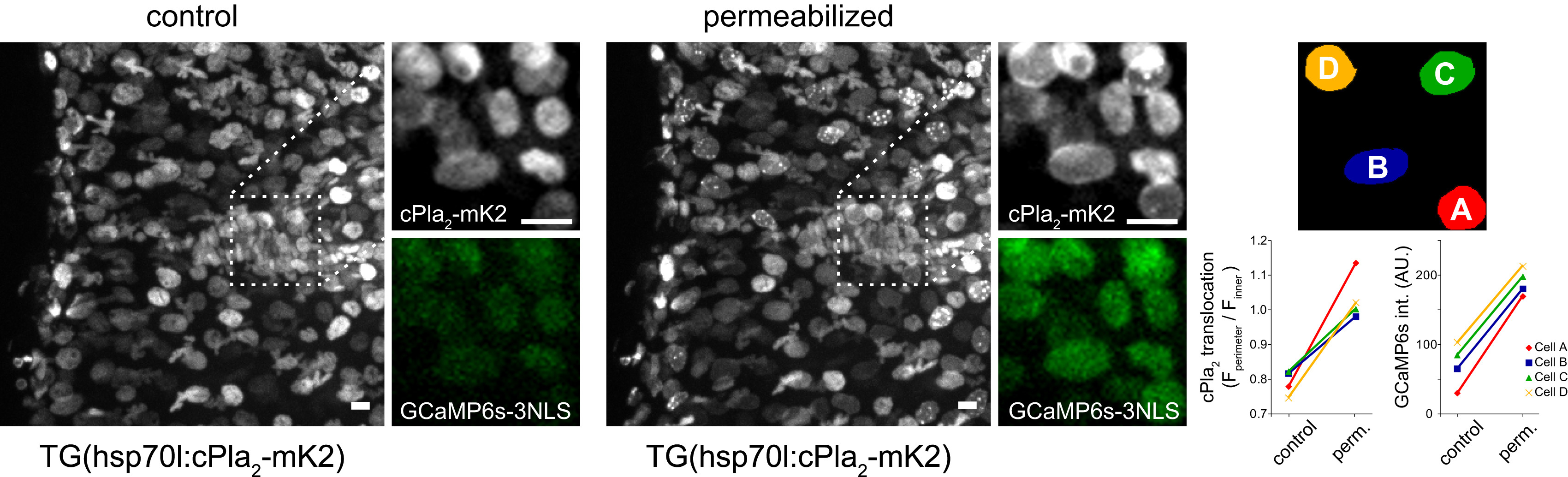

Left panel, confocal imaging of cPla₂-mK2 localization and nuclear Ca²⁺ levels with GCaMP6s before and after digitonin-induced permeabilization of zebrafish larvae, bathed in isotonic medium. Note the translocation of cPla₂ and the increase in [Ca²⁺] after permeabilization. Right panel, quantification of cPla₂-mK2 INM translocation and average GCaMP6s fluorescence before and after permeabilization in the selected nuclei marked by rainbow colored masks (A-D). Scale bars, 10 µm.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Cell, 165, Enyedi, B., Jelcic, M., Niethammer, P., The Cell Nucleus Serves as a Mechanotransducer of Tissue Damage-Induced Inflammation, 1160-1170, Copyright (2016) with permission from Elsevier. Full text @ Cell
