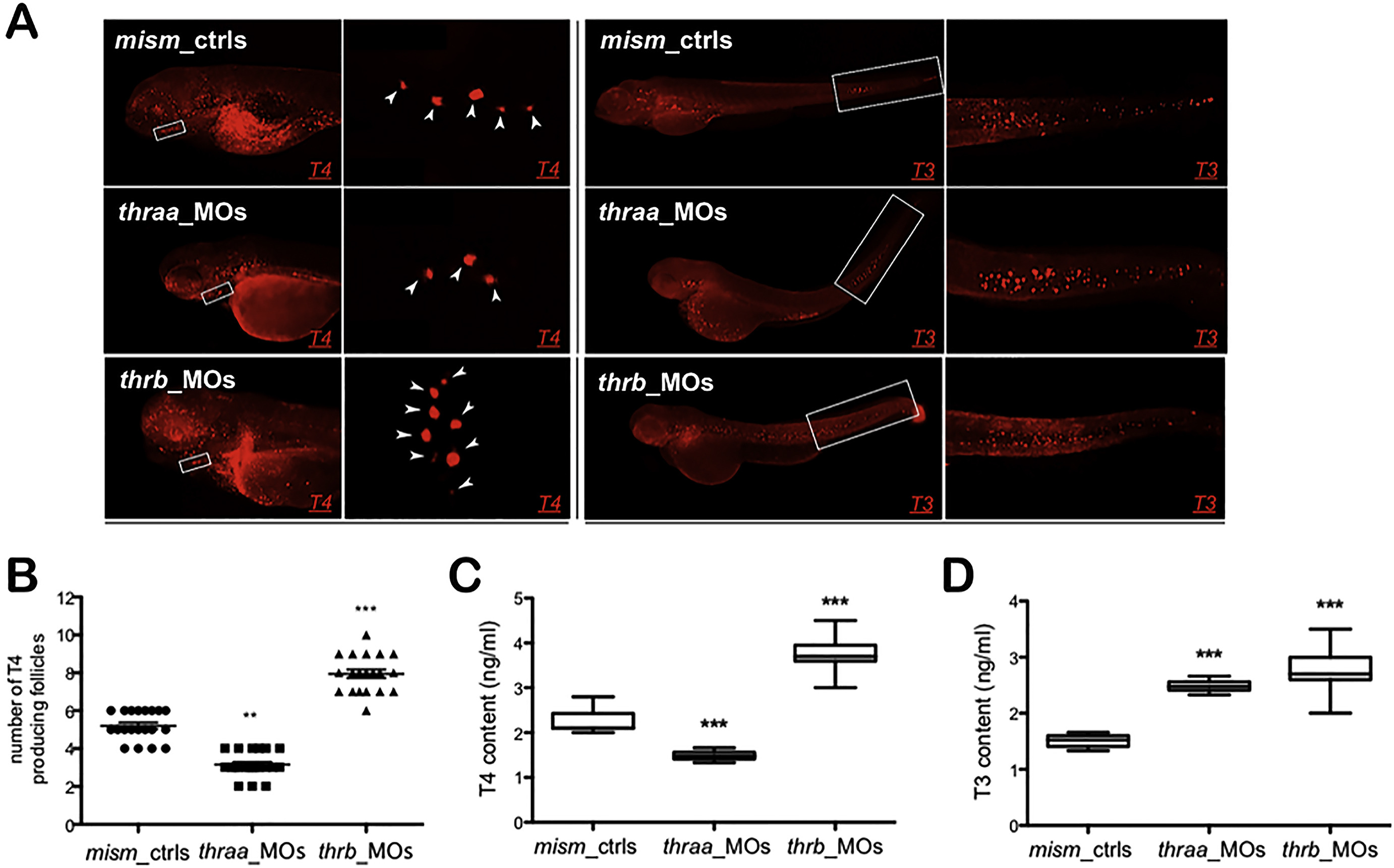

Qualitative and quantitative analysis of TH levels at 120 hpf. Panel A) Immunofluorescence with anti-T4 and anti-T3 antibodies. The T4-positive thyroid follicles are visible in lateral view (square), and in ventral view in the corresponding magnification (arrows). The T3-positive spots and their accumulation in the tail (in the magnification) are visible in lateral view. Panel B) Number of T4-positive thyroid follicles at 120 hpf. Results are expressed as mean ± SD of 20 embryos each. Panels C and D) Quantification of T4 and T3 total concentrations (ng/ml) measured with a specific ELISA kit. **p < 0.01 and ***p < 0.001 vs mism_ctrls.
