Fig. S10

ID: ZDB-IMAGE-160224-9
Publication: Ulrich et al., 2016 - Reck enables cerebrovascular development by promoting canonical Wnt signaling
All Figures: Figures for Ulrich et al., 2016


Figure Caption

Fig. S10

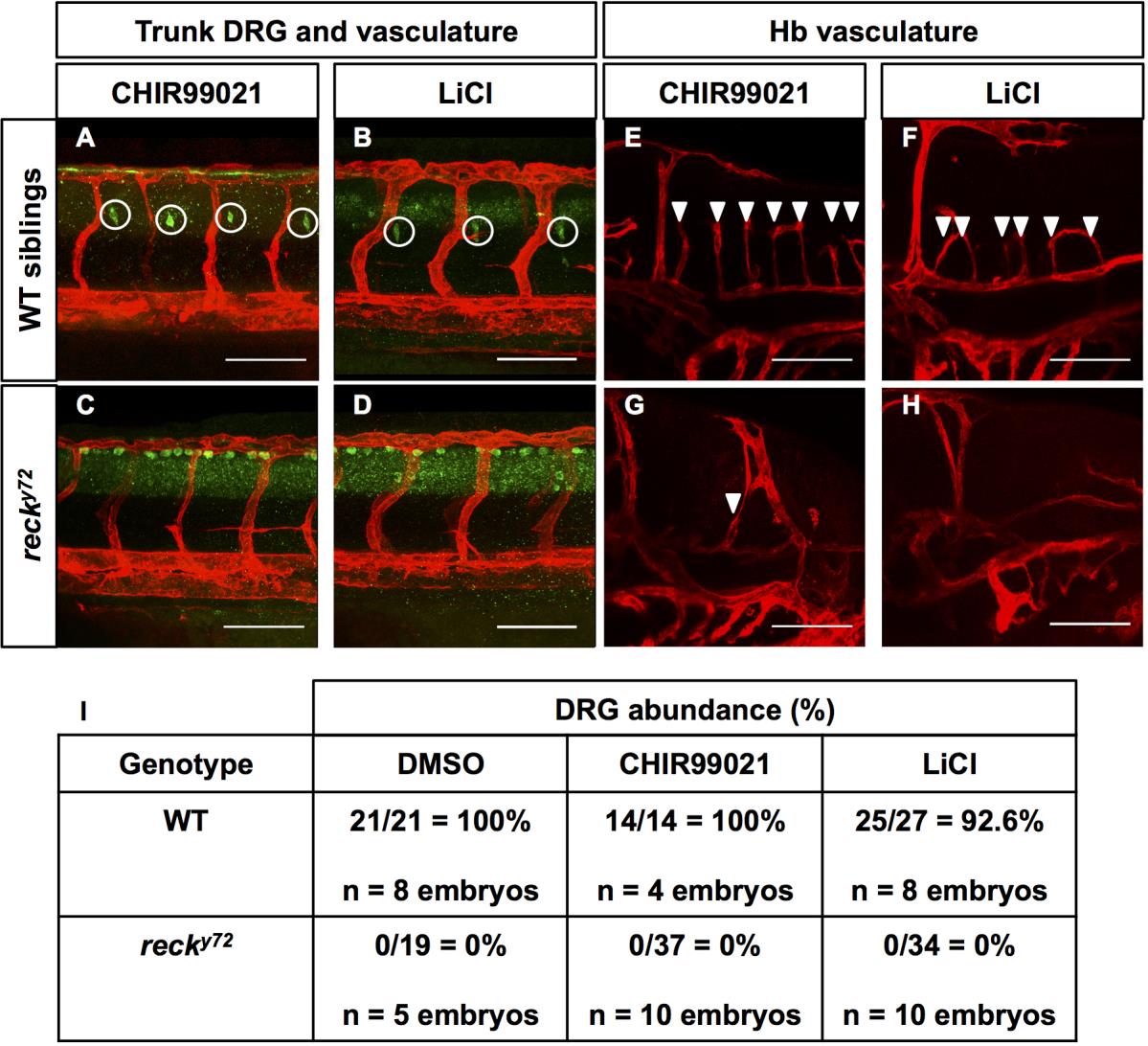

Chemical activation of canonical Wnt signaling with the GSK3b inhibitors CHIR99021 and LiCl fails to rescue the DRG and CtA deficits of reck^y72 mutants. (A-H) Confocal lateral images at 72 hpf. Anterior, left; dorsal, up. Scale Bars: 100 µm. Genotypes and treatments as indicated. (A-D) DRG (white circles, green HuC immunofluorescence) and vasculature (Tg(kdrl:HsHRAS-mCherry)^s896; red) in the trunk. (E-H) Hb vasculature (Tg(kdrl:HsHRAS-mCherry)^s896; red). Central Arteries (CtA; white arrowheads). (I) Quantification of DRG abundance in WT and reck^y722 mutants treated with DMSO vehicle, CHIR99021 and LiCl. DRG abundance was scored by imaging a region of the anterior trunk at the level of the yolk extension spanning 3-4 Se vessels (in WT animals there is one DRG per Se vessel). Thus, the percentages were calculated from the ratio of DRG found/DRG expected.
