Fig. 5
Comparing Resolution of LFM and SPED Light Sheet Methods

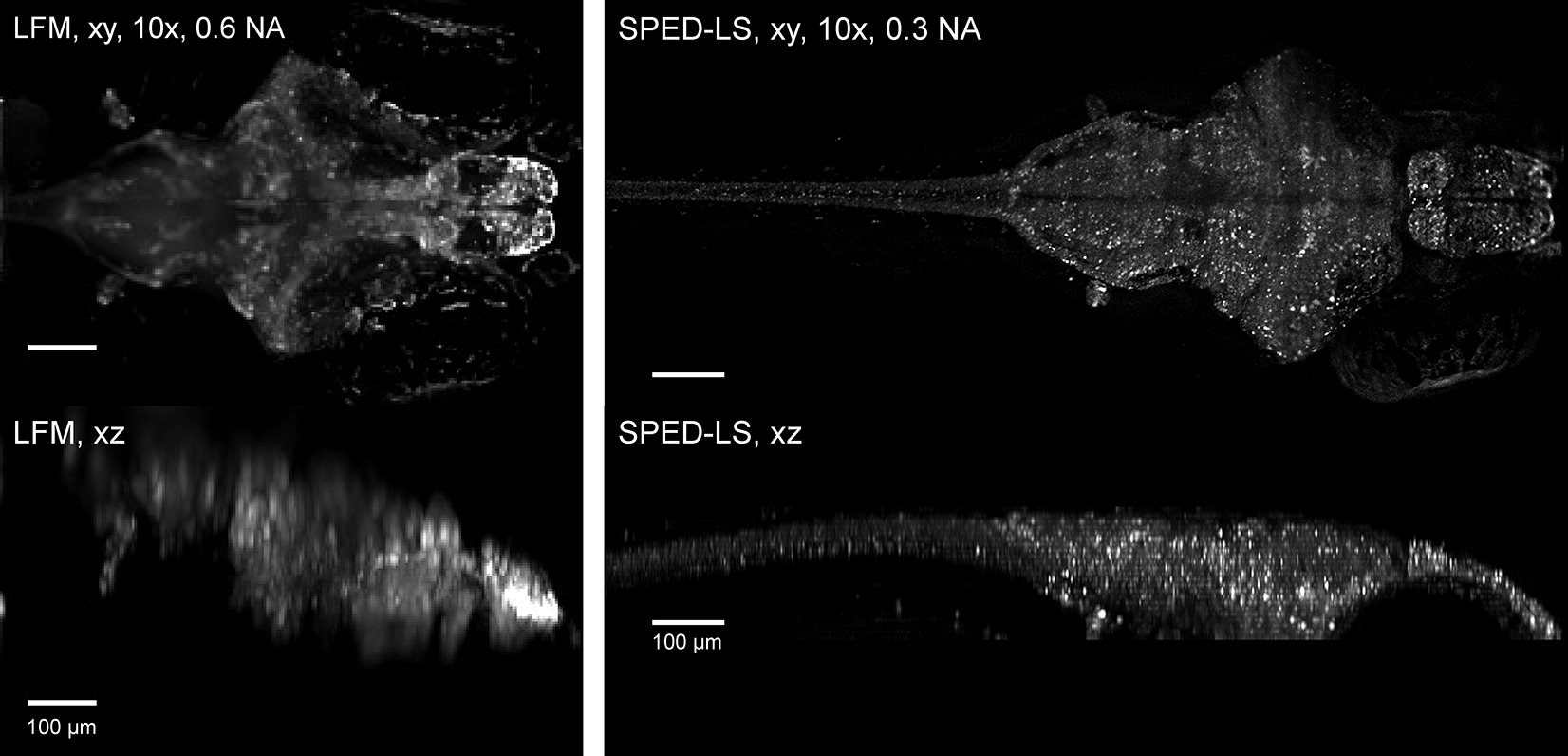

Three-dimensional volumes were acquired from a 10 dpf Tg(elavl3:H2B-GCaMP6s) zebrafish larva with LFM and SPED light sheet microscopy, using 10×/0.6NA (water immersion, Olympus) objective with 500 ms exposure and 10×/0.3NA (air, Olympus) objective with 460 ms exposure, respectively. SPED light sheet images in Figure 6B were acquired with less than 100 ms exposure/volume, still yielding cellular resolution. Scale bars, 100 µm.
