Fig. 9

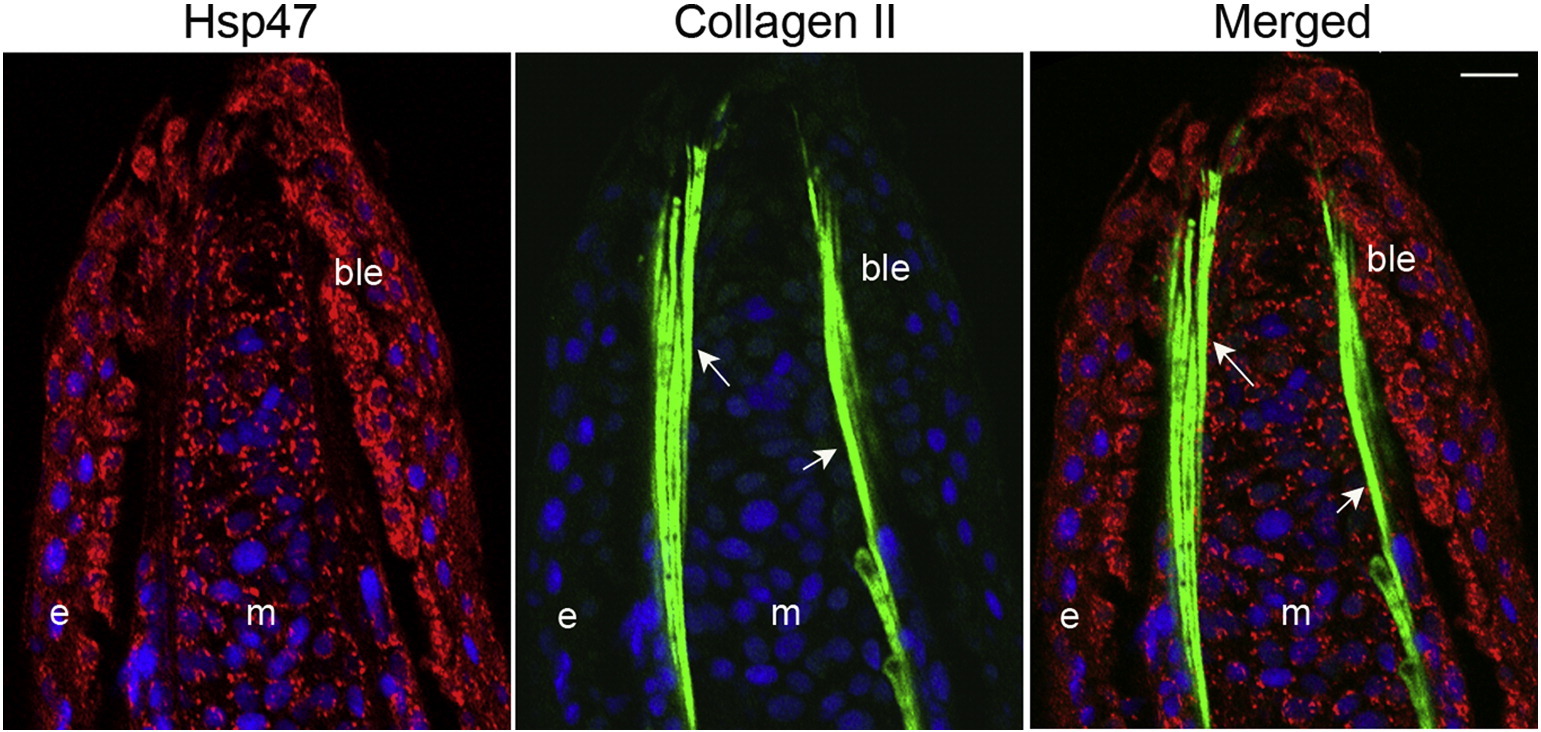

Localization of Hsp47 and Collagen type II in WT-5 dpa fins. Confocal images of a WT-5 dpa longitudinal fin section immunostained with Hsp47 (red) and collagen type II (green) and counterstained with To-pro to detect nuclei (blue). Arrows indicate actinotrichia. ‘ble’ is basal layer of epithelium, ‘e’ epidermis and ‘m’ mesenchyme. Scale bar is 10µm and applies to all panels.
