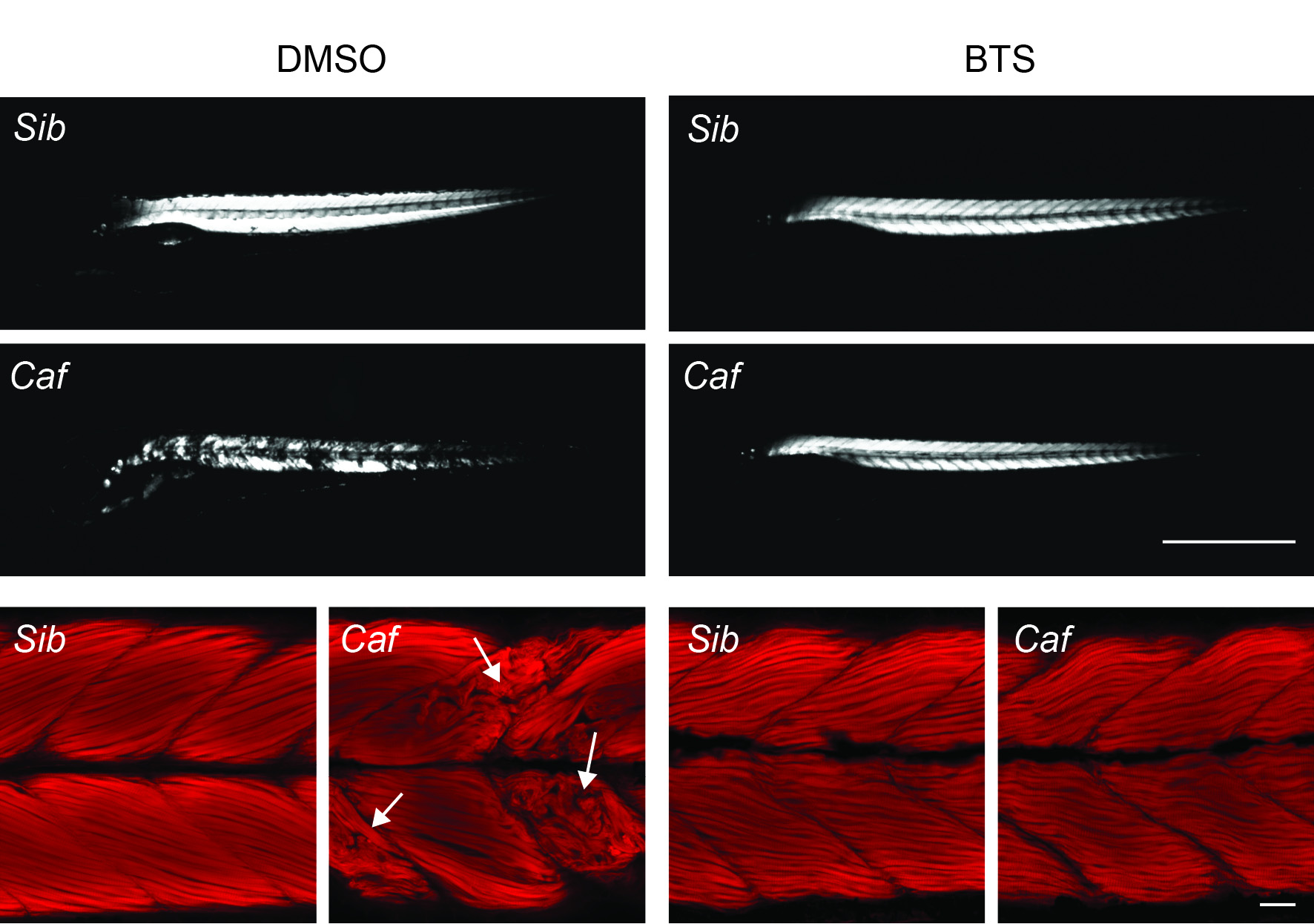

Fig. 2 Early immobilization by BTS prevents muscle structural changes in Candyfloss (Caf) mutant larvae and their normal siblings (Sib) at 4 dpf.
Upper panels: birefringence microscopy of Caf and siblings from 0.1% DMSO and 50 µM BTS treatment respectively. Lower panels: whole mount preparations with Rhodamine phalloidin staining. Arrows indicate altered areas. These illustrations were typical of n = 6 Rhodamine phalloidin stained samples per each group, in 3 treatment sets. Scale bars: 1 mm (upper); 50 µm (lower).
