ZFIN Image: Jensen et al., 2015, Fig. S1


Figure Caption

Fig. S1

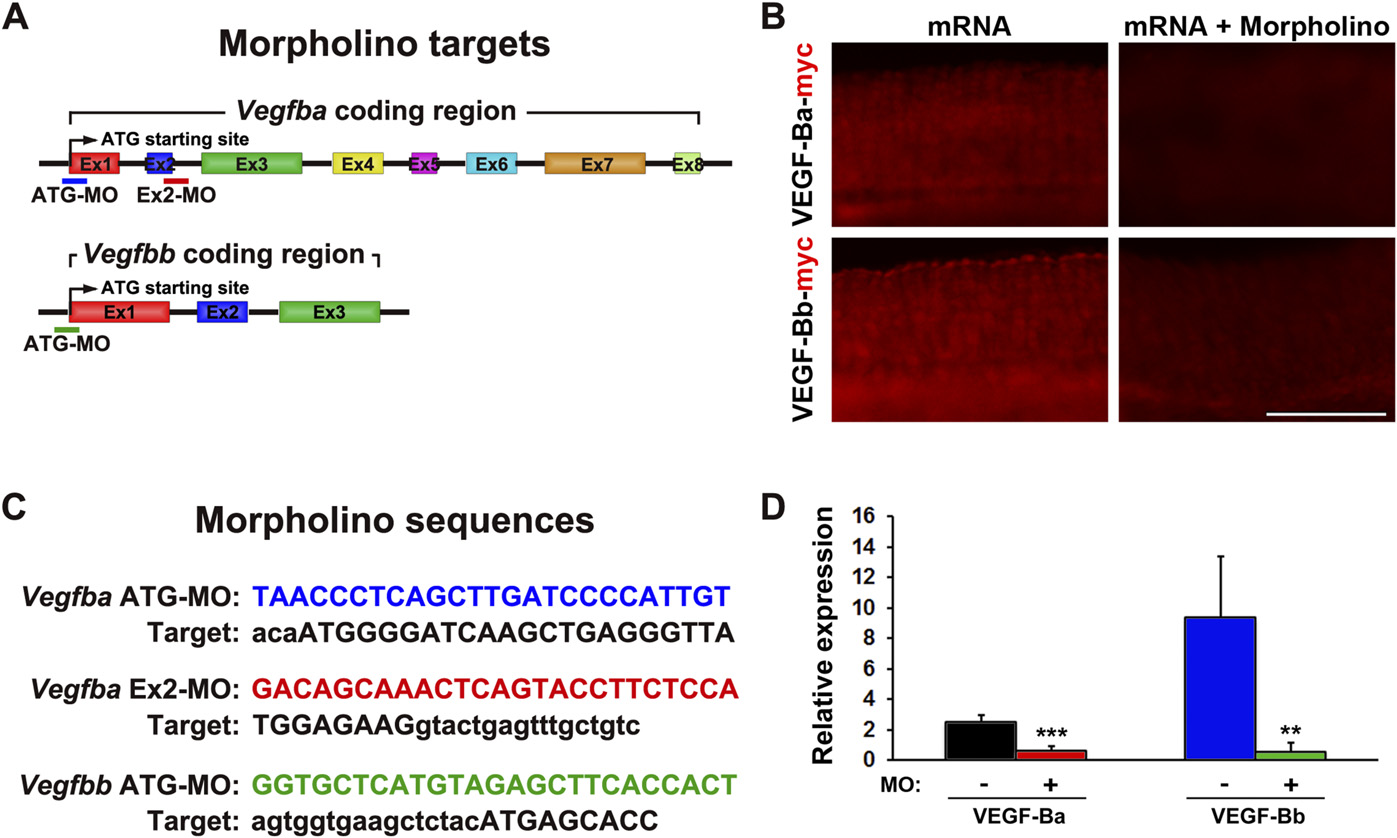

Morpholino designs and inhibitory efficacies. (A) Schematic representation of the coding sequence of the zebrafish Vegfba and Vegfbb genes. Morpholinos designed in this study were indicated. (B) Whole-mount immunohistochemical staining with an anti-Myc antibody of 24-hpf zebrafish embryos injected with 100 ng Vegfba:myc or Vegfbb:myc mRNAs with or without the corresponding ATG-blocking morpholinos. (Scale bar, 100 µm.) (C) Nucleotide sequences of Vegfb morpholinos and their targets. Lowercase letters in the targets indicate noncoding bases. (D) Quantification of anti-myc reactivity signals in 24-hpf zebrafish embryos injected with 100 ng Vegfba:myc or Vegfbb:myc mRNA with or without the corresponding ATG-blocking morpholinos (average: n = 18). **P < 0.01; ***P < 0.001.
