Fig. S2

ID
ZDB-IMAGE-151125-74
Genes
Source
Figures for Okuda et al., 2015
Figure Caption

Fig. S2

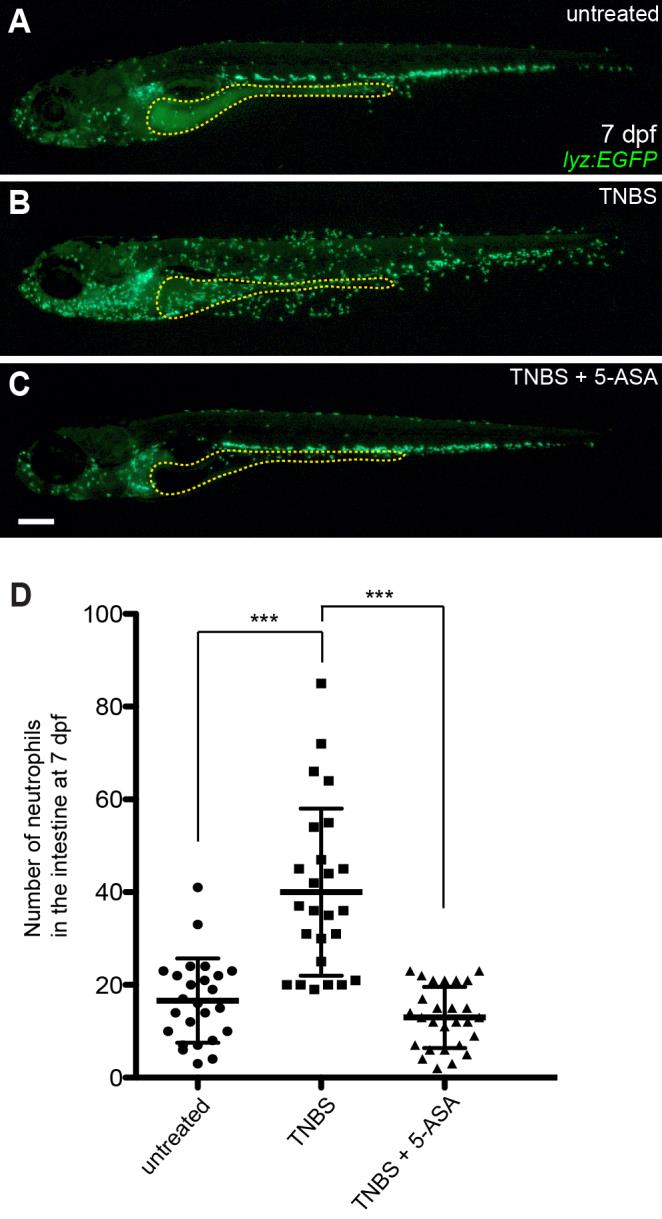

Treatment with 5-aminosalicylic acid (5-ASA) reduces TNBS-mediated neutrophil recruitment to the intestine. (A-C) Lateral images of untreated (A), TNBS-treated (B) and TNBS + 5-ASA treated (C), lyz:EGFP larvae at 7 dpf. The intestine is outlined with a yellow dotted line. (D) Quantification of neutrophil number in the intestine of larvae treated with TNBS, or TNBS + 5-ASA at 7 dpf (ne25). Error bars, ±s.d. ***P<0.001 by one-way ANOVA with Dunnett’s multiple comparison test. Scale bars: 200 µm.

Figure Data
