Fig. 6

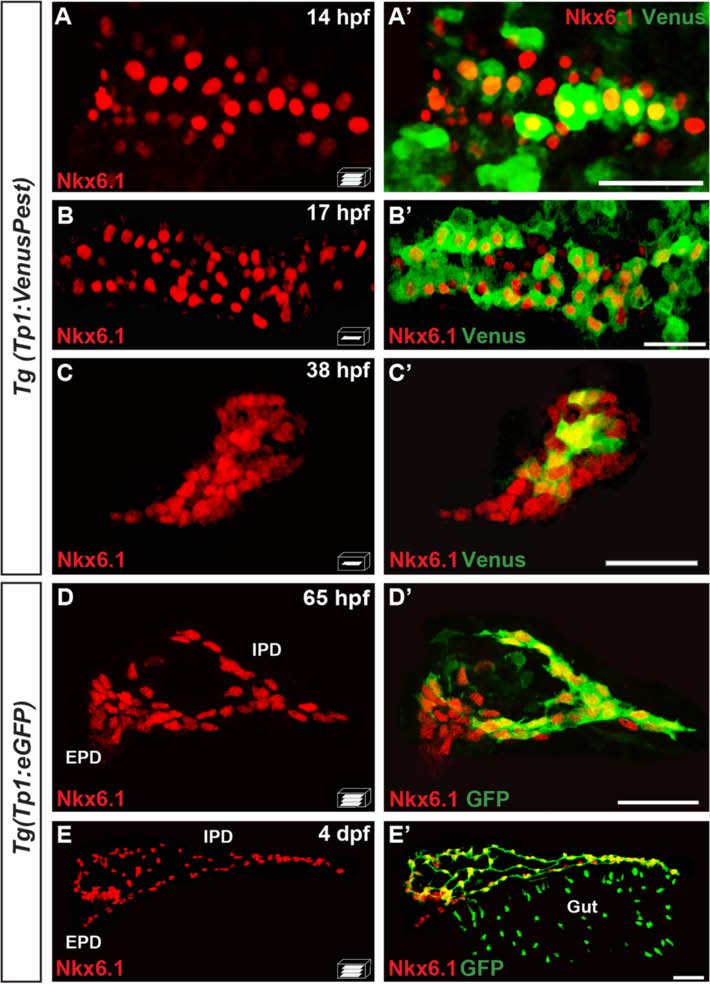

The pancreatic expression domain of Nkx6.1 includes the Notch-responsive cells. Immunodetection of endogenous Nkx6.1 (red) and Venus (revealed with anti-GFP, green) in Tg(TP1:VenusPest) (a–c′) or GFP in Tg(Tp1:eGFP) embryos (d–e′) at the indicated stages. All views are ventral with the anterior part to the left and represent either z-plane confocal images (b–c′) or confocal projection images (a, a′, d, d′, e, e′). Scale bars = 40 µm. EPD extra-pancreatic duct, IPD intra-pancreatic duct
