Figure Caption

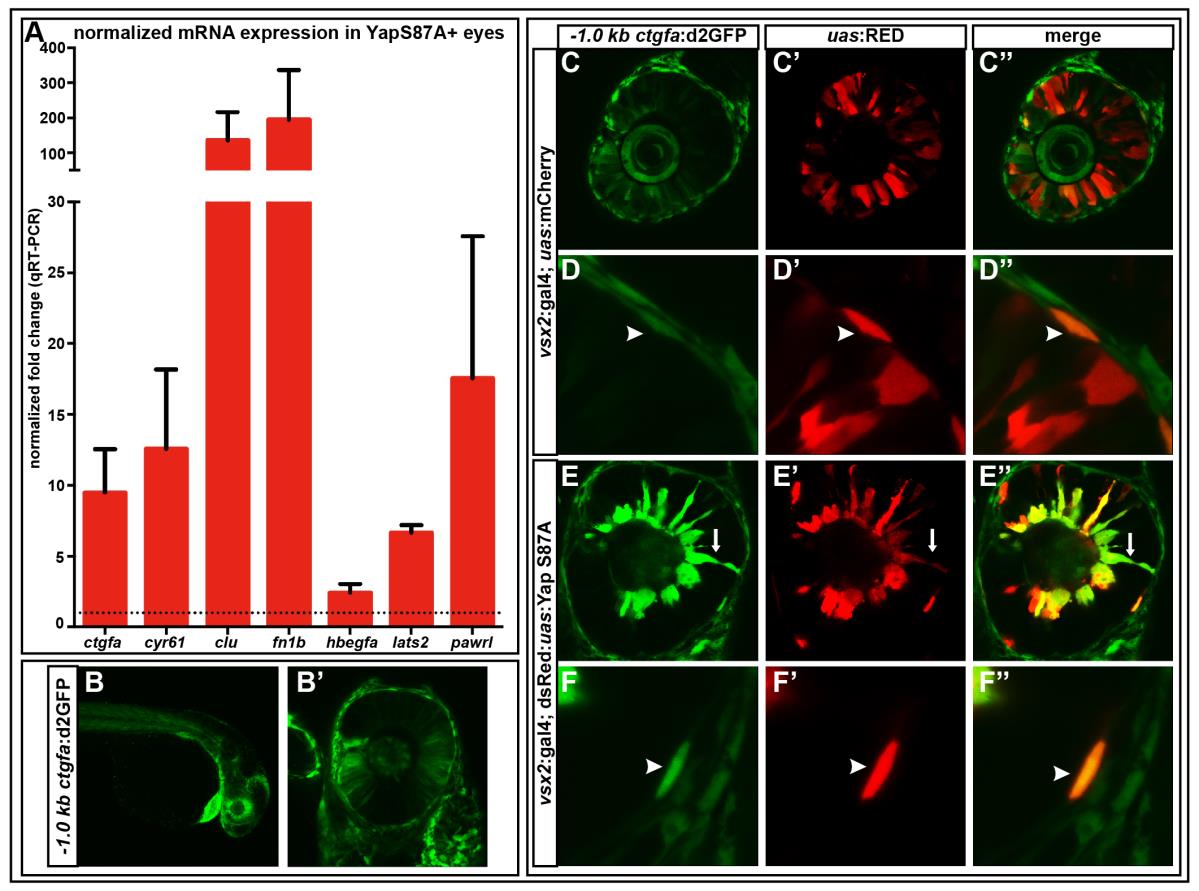

Fig. S3
qRT-PCR validates mRNA transcripts that were upregulated via RNAseq in Yap S87A overexpressing 36 hpf eyes and -1.0kb ctgfa:d2GFP is upregulated by Yap S87A.
(A) ctgfa (9.5-fold, p=0.0508), cyr61 (12.6-fold, p=0.1072), clu (135.5-fold, p=0.1705), fn1b (195-fold, p=0.2418), hbegfa (2.4 –fold, p=0.0845), lats2 (6.7-fold, p=0.0005), pawrl (17.6-fold, p=0.1736). Dashed line indicates the normalized expression levels of yap and taz in wild-type embryos. An unpaired t-test was performed on mRNA expression and statistical significance was performed using the Holm-Sidak method. Error bars = s.e.m. (B-B′) -1.0kb ctgfa:d2GFP expression is observed in the NR, RPE, heart, and other tissues at 28 hpf. (C-F′′) Yap S87A overexpression results in increased -1.0kb ctgfa:d2GFP in RPE cells (F-F′′) and ectopic NR expression (E-E′′) compared to mCherry (C-D′′). Arrows=ectopic NR, arrow heads=RPE expression. All embryos are 28 hpf.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Development
