Fig. S2

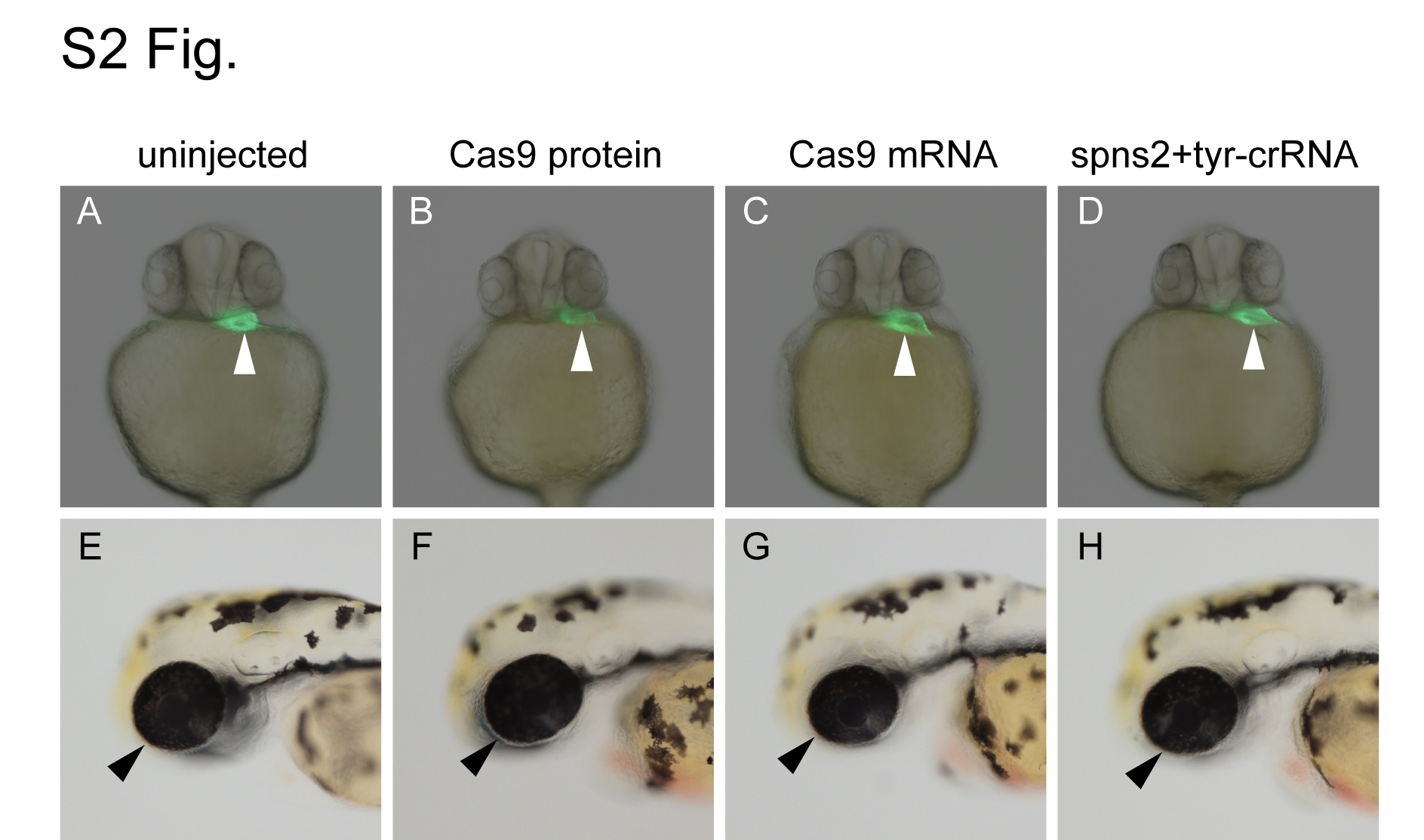

Requirement of tracrRNA and crRNA for Cas9-mediated genome modifications.

(A, E) an uninjected embryo. (B, F) Tg(cmlc2:EGFP)-derived embryos injected with Cas9 protein (400 pg). (C, G) Tg(cmlc2:EGFP)-derived embryos injected with Cas9 mRNA (250 pg). (D, H) Tg(cmlc2:EGFP)-derived embryos injected with two crRNAs (spns2-crRNA; 25 pg + tyr-crRNA; 25 pg) and tracrRNA (100 pg). No abnormality in cardiac development at 1 dpf or the retinal epithelium pigmentation at 2 dpf was observed.
