Fig. 7

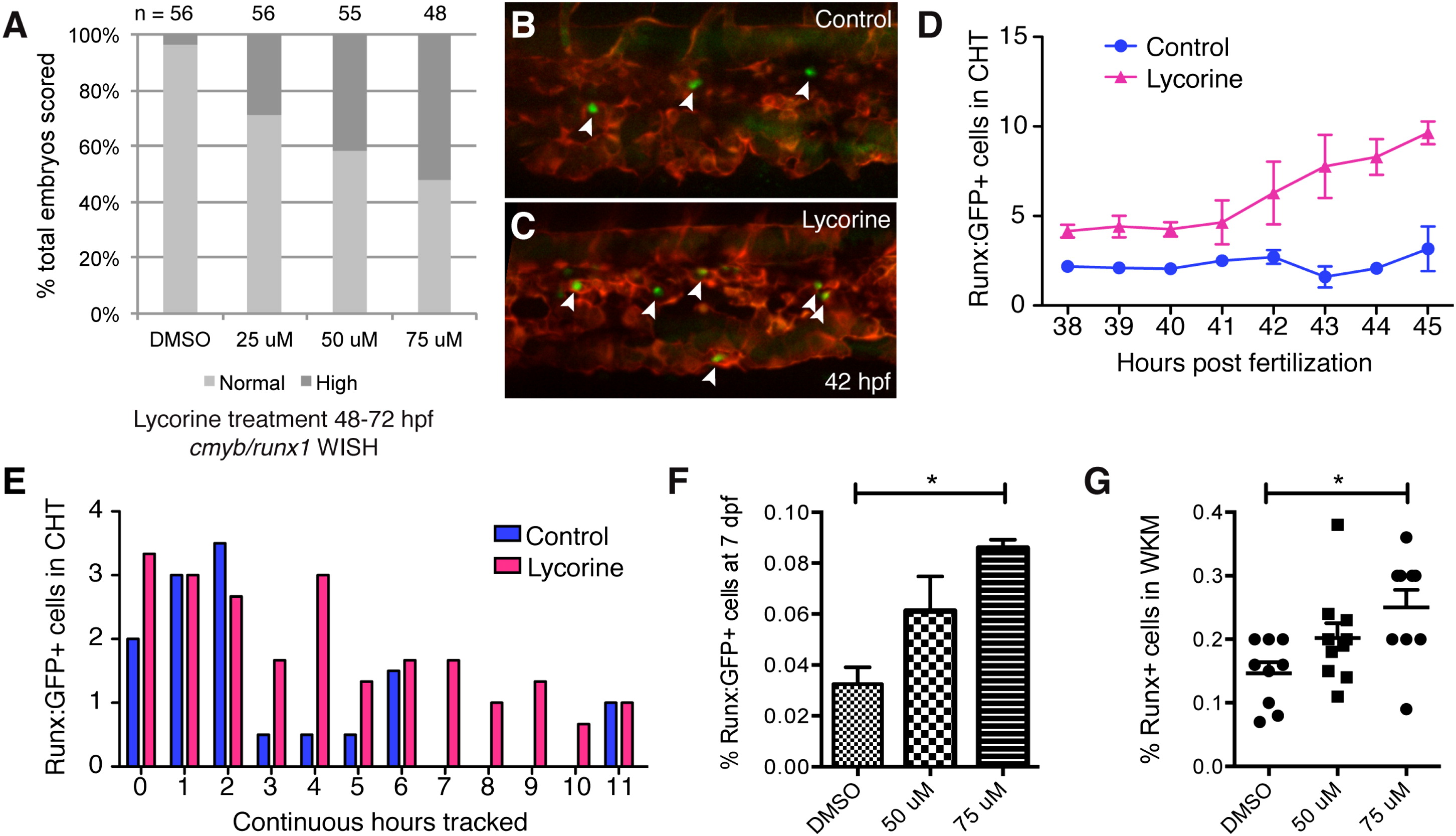

Modulating HSPC Niche Colonization with Lycorine Has Long-Term Effects on the Stem Cell Pool

(A) Lycorine treatment dose-dependently increases the percentage of embryos with high cmyb/runx1 expression levels, as shown in Figure S6E (linear regression of Y [response] on X [dose] is significant: r2 = 0.146607, p = 6.46 × 109).

(B and C) Stage-matched frames from parallel time-lapse movies show more HSPCs (arrowheads) with (C) 25 µM lycorine treatment than (B) DMSO-treated controls (42 hpf, Runx:GFP;kdrl:RFP).

(D) HSPCs counted in each frame and then averaged each hour. Five movies imaged in parallel: n = 2 controls and n = 3 lycorine treated.

(E) HSPCs in the same embryos were scored for continuous hours tracked in CHT. Longer median time HSPCs spent in CHT of lycorine-treated embryos was significant (1.67 hr; Wilcoxon signed-rank test, p = 0.01; HSPC counts normalized because treatment group was n = 3 and control group was n = 2).

(F and G) Pools of Runx:GFP+ embryos treated with lycorine from 2–3 dpf and washed off had significantly increased HSPC at (F) 7 dpf (DMSO versus 75 µM, p = 0.0004; flow cytometry analysis of four independent pools per dose) and (G) 4 months (DMSO versus 75 µM, p = 0.006).

Error bars show mean ± SEM. See also Figure S6.
