ZFIN Image: Kok et al., 2015, Fig. 3


Figure Caption

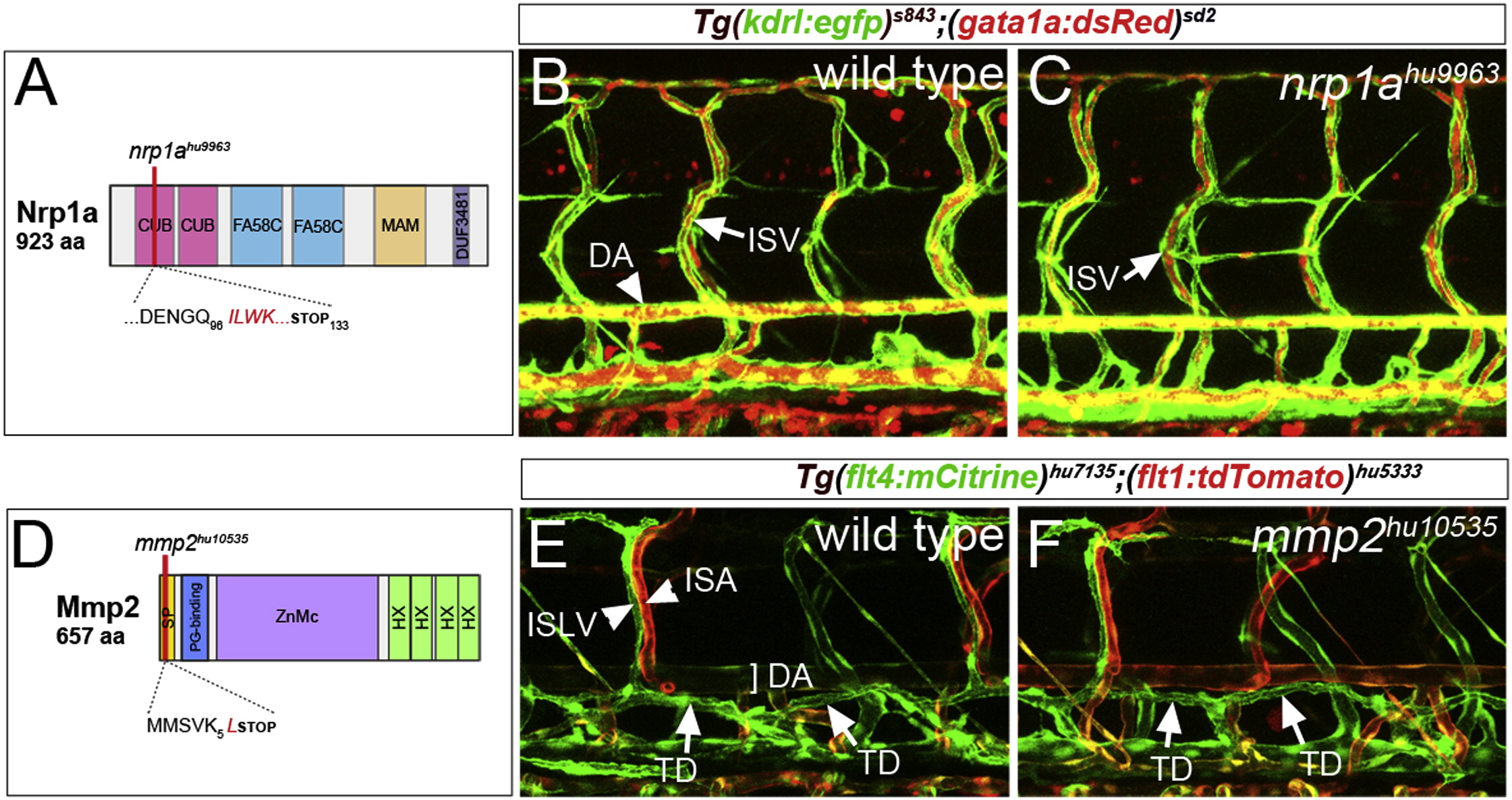

Fig. 3

Normal Vascular and Lymphatic Development in nrp1a and mmp2 Mutant Embryos

(A) Schematic of Nrp1a domain structure, indicating position of nrp1a^hu9963. CUB, CUB domain; FA58C, coagulation factor 5/8 C-terminal domain; MAM, MAM domain; and DUF3481, domain of unknown function.

(B and C) Confocal micrograph of embryos bearing Tg(kdrl:egfp)^s843 (green) and Tg(gata1a:dsRed)^sd2 (red) transgenes at 5 days postfertilization. (B) Wild-type: DA and ISV are indicated. (C) nrp1a^hu9963 mutant: ISV carrying red blood cells is indicated.

(D) Schematic of the Mmp2 and mmp2^hu10535 allele. SP, signal peptide; PG-binding, peptidoglycan-binding domain; ZnMc, zinc-dependent metalloprotease; and HX, hemopexin-like repeats.

(E and F) Confocal micrographs of embryos bearing Tg(flt4:mCitrine)^hu7135 (green) and Tg(flt1:tdTomato)^hu5333 (red) transgenes. (E) Wild-type: ISLV, intersegmental artery (ISA), DA, and TD are indicated. (F) mmp2^hu10535 mutant embryo.

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 32(1), Kok, F.O., Shin, M., Ni, C., Gupta, A., Grosse, A.S., van Impel, A., Kirchmaier, B.C., Peterson-Maduro, J., Kourkoulis, G., Male, I., DeSantis, D.F., Sheppard-Tindell, S., Ebarasi, L., Betsholtz, C., Schulte-Merker, S., Wolfe, S.A., Lawson, N.D., Reverse Genetic Screening Reveals Poor Correlation between Morpholino-Induced and Mutant Phenotypes in Zebrafish, 97-108, Copyright (2015) with permission from Elsevier. Full text @ Dev. Cell
