Figure Caption

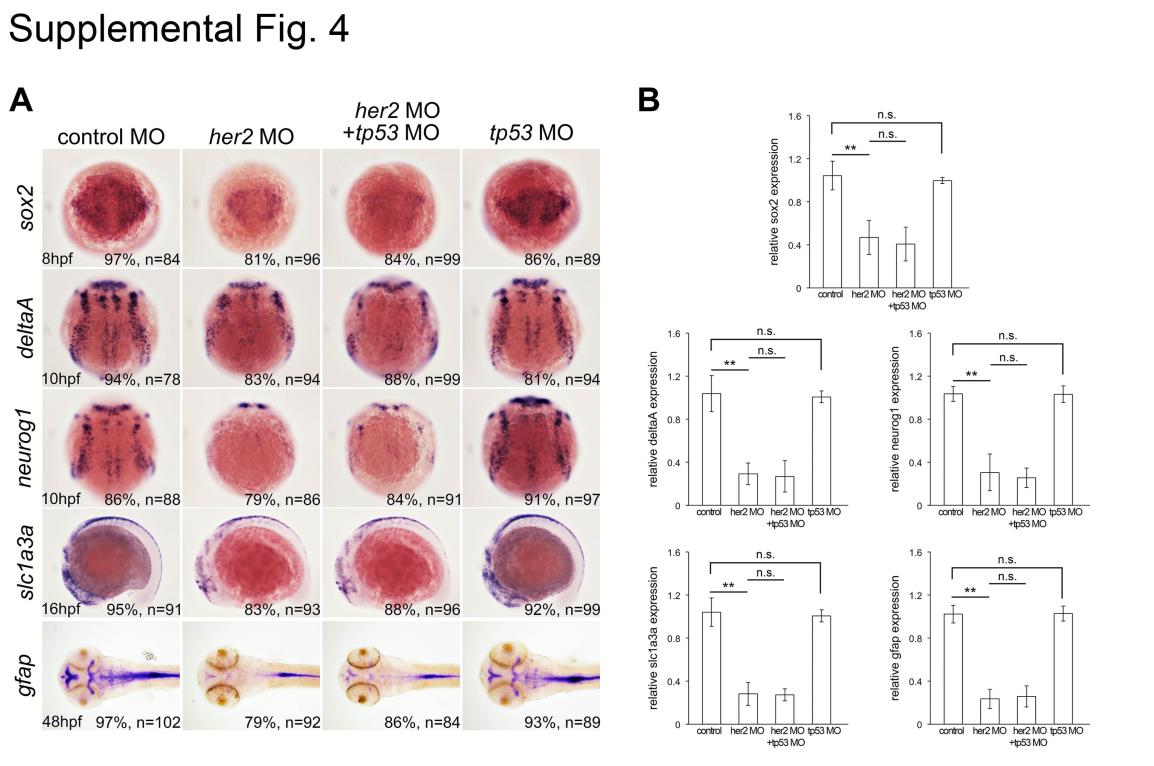

Fig. S4 The phenotypes in Her2 morphants were not caused by nonspecific p53 activation. Embryos co-injected with her2 MO and tp53 MO were compared with Her2 morphants and did not cause any detectable deviation from all markers tested, and injection of tp53 MO alone did not show any significant alterations compared to the controls, as shown by in situ hybridization (A) and quantified by qPCR (B).*, p < 0.05; **, p < 0.01; n. s., not significant.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Developmental Biology, 397(1), Cheng, Y.C., Chiang, M.C., Shih, H.Y., Ma, T.L., Yeh, T.H., Huang, Y.C., Lin, C.Y., Lin, S.J., The transcription factor hairy/E(spl)-related 2 induces proliferation of neural progenitors and regulates neurogenesis and gliogenesis, 116-28, Copyright (2015) with permission from Elsevier. Full text @ Dev. Biol.
