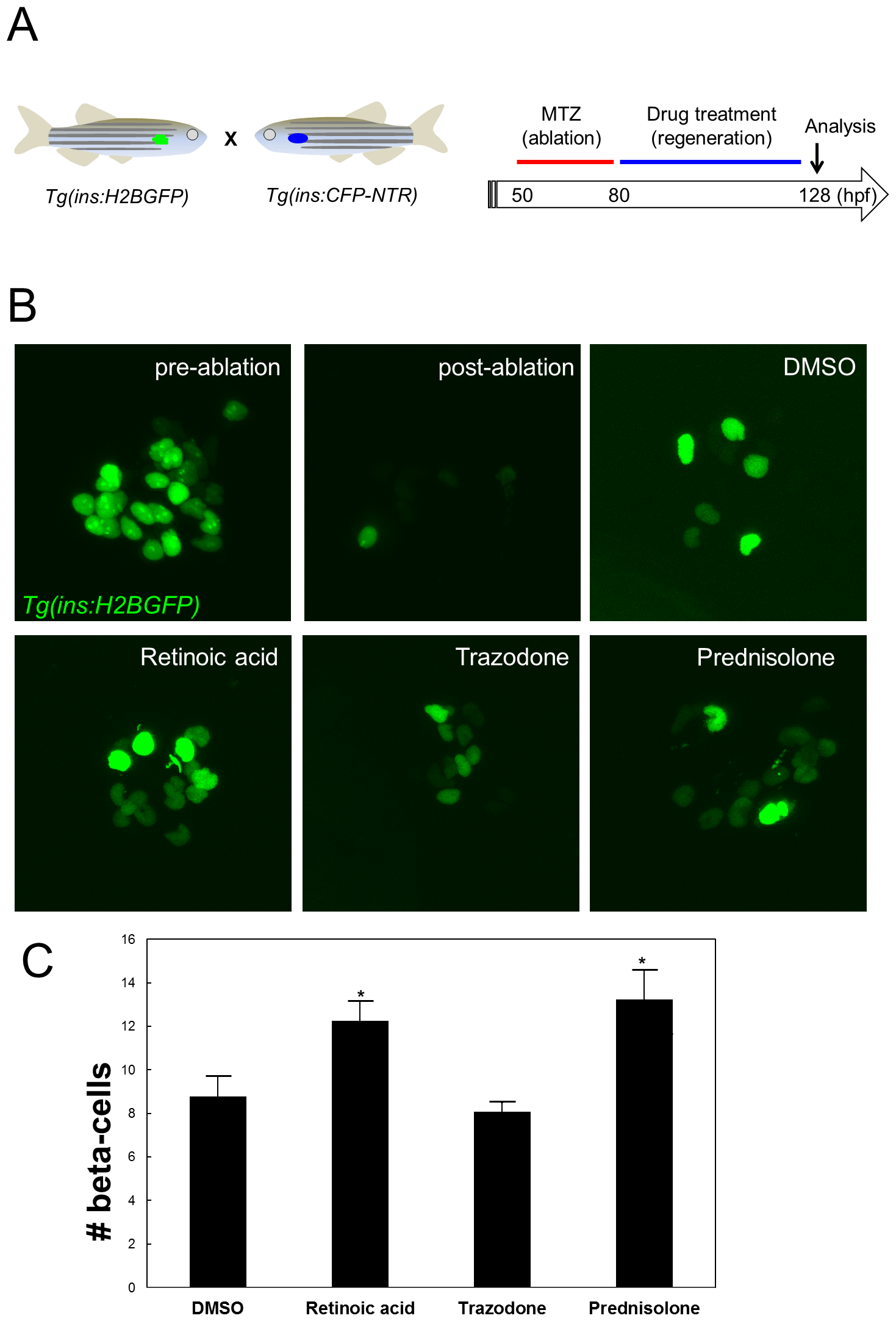

Fig. 4
RA and Prednisolone but not Trazodone, enhance beta-cell regeneration.
(A) Schematic diagram for assessment of beta-cell regeneration. To examine beta-cell regeneration, we made use of the NTR/MTZ beta-cell ablation model. At 80 hpf, after ablating the beta-cells with MTZ from 50–80 hpf, Tg(ins:H2BGFP);Tg(ins:CFP-NTR) larvae were treated with the compounds for 48 h. The numbers of Tg(ins:H2BGFP)+ cells were counted at 128 hpf. (B) Confocal images of Tg(ins:H2BGFP)+ beta-cells in larvae treated with 1 μM retinoic acid, 10 μM trazodone, or 10 μM prednisolone in 1% DMSO at 128 hpf. Each image is a lateral view, anterior to the bottom and dorsal to the right. (C) Quantification of beta-cell regeneration per larva at 128 hpf, following treatment with hit compounds from 80–128 hpf. Error bars represent SEM. *P<0.05 compared to DMSO treated controls; n = 13–16 larvae for each group.
