Fig. S2

Pard3-EGFP Overexpression Phenocopies miR-219 Loss of Function

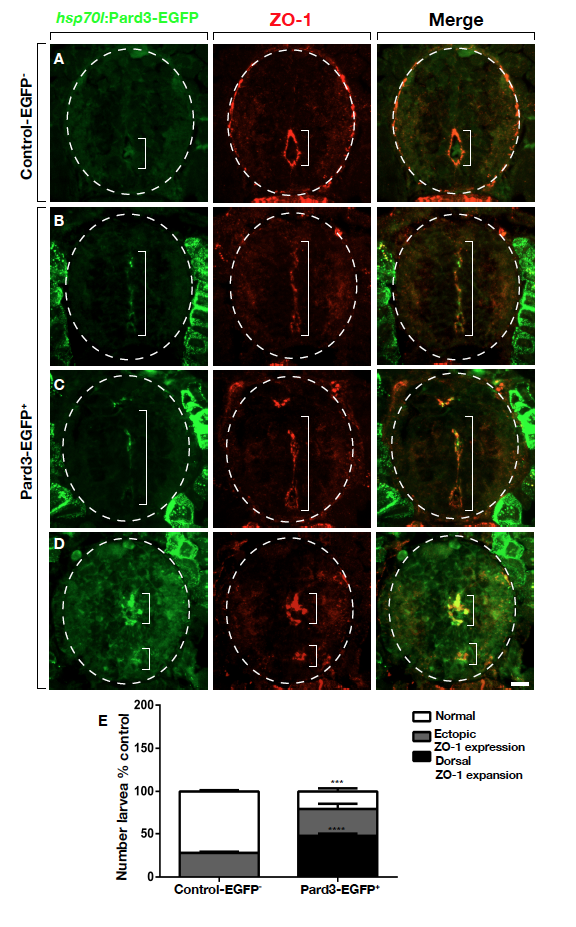

Representative spinal cord transverse images of 3 dpf heat-shocked control and heat-shocked Tg(hsp70l:pard3-EGFP) larvae processed for ZO-1 immunohistochemistry with dorsal to the top. (A) Control non-transgenic larva. ZO-1 is restricted to the central canal. (B and C) Examples of heat-shocked transgenic larvae showing strong Pard3-EGFP expression outside the spinal cord (outlined) and co-localized with ZO-1 to an apparent primitive lumen extending into dorsal spinal cord. (D) Example of a heat-shocked larva with an apparent double lumen (ectopic class) with co-localized Pard3-EGFP and ZO-1. (E) Graph showing number of larvae having dorsal expansion or ectopic co-localization of Pard3-EGFP (n=12 each for control and experimental) ***P=0.0002, ****P<0.0001. Scale bar equals 10 μm.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 27(4), Hudish, L.I., Blasky, A.J., and Appel, B., miR-219 Regulates Neural Precursor Differentiation by Direct Inhibition of Apical Par Polarity Proteins, 387-398, Copyright (2013) with permission from Elsevier. Full text @ Dev. Cell
