Figure Caption

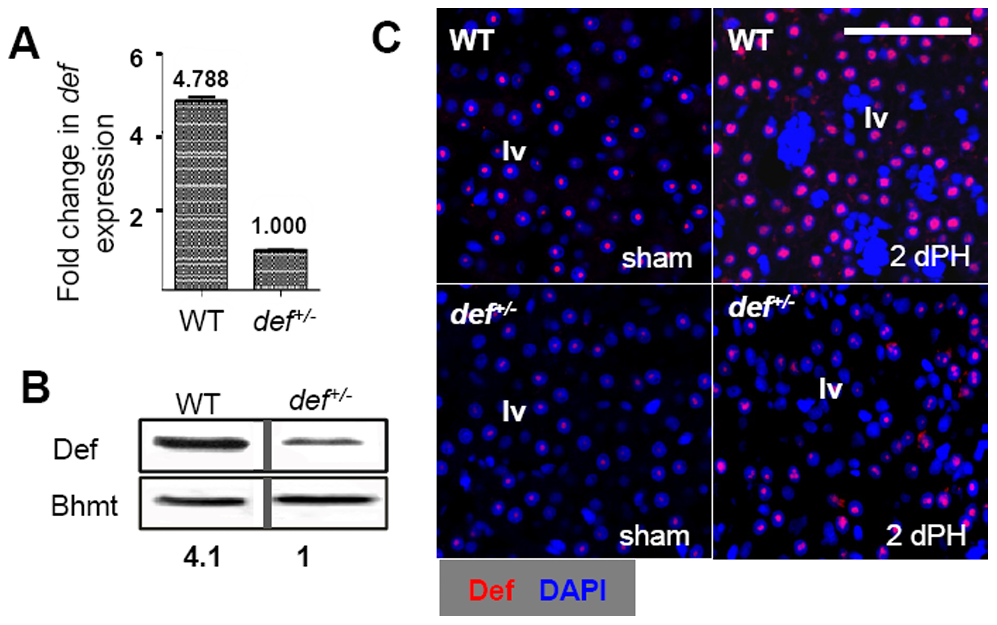

Fig. 1

def^+/- liver suffers from haploinsufficiency of Def.

(A) qPCR analysis of def transcripts in adult wild-type and def^+/- liver. The expression of def was normalised against elf1a and is shown as the fold change in expression, with the value from def^+/- being set at 1. The values plotted represent the means ± standard errors of the mean. (B) Western blotting analysis of the Def protein. Bhmt: loading control. Densitometry was performed using Photoshop. The value of Def was obtained by normalising against Bhmt expression. The relative value of Def protein in def^+/- was set at 1. (C) Representative images of immunostaining of Def (red) in wild-type and def^+/- liver 2 days after PH. lv, liver tissue. Scale bar: 100 μm (C).
