Fig. 4

ID: ZDB-IMAGE-140808-4
Publication: Monteiro et al., 2014 - V-ATPase proton pumping activity is required for adult zebrafish appendage regeneration
All Figures: Figures for Monteiro et al., 2014


Figure Caption

Fig. 4 V-ATPase is not required for larval fin fold regeneration.

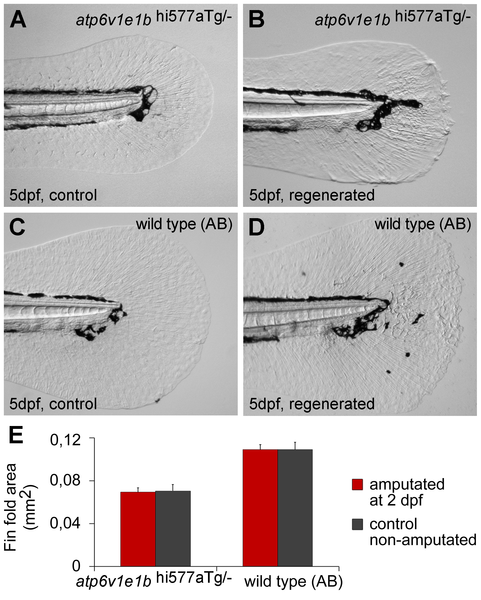

(A, B) Fin fold of 5 dpf atp6v1e1^hi577aTg/- mutant larvae, intact (A) or regenerated after amputation at 2 dpf (B). (C, D) Fin fold of 5 dpf AB wild type larvae, intact (C) or regenerated after amputation at 2 dpf (D). (E) Area of intact and regenerated fin fold by 5 dpf for either genotypes (p>0.05). dpa: days post amputation. For each panel, n = 15.
