Fig. S3

ID: ZDB-IMAGE-140808-31
Publication: Li et al., 2014 - Excessive nitrite affects zebrafish valvulogenesis through yielding too much NO signaling
All Figures: Figures for Li et al., 2014


Figure Caption

Fig. S3

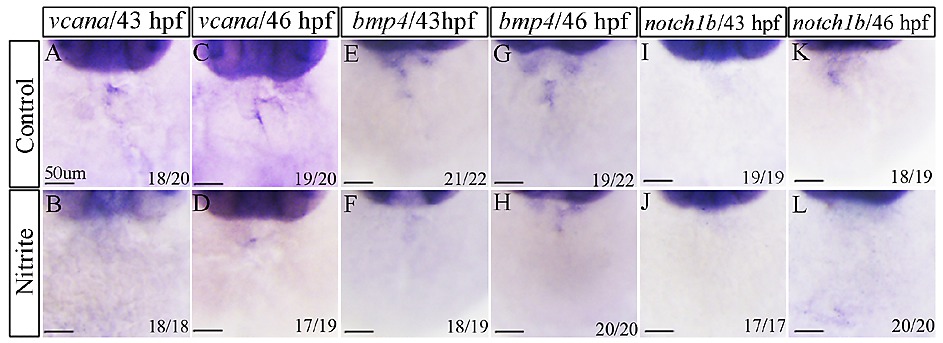

Excessive nitrite exposure diminished expression of valve progenitor makers as early as 43 hpf. Expressions of vcana (A, C) and bmp4 (E, G) were observed in the AVC of control embryos at 43 hpf and 46 hpf. 100 mg/l nitrite exposure from 10 hpf significantly decreased their expressions in the AVC (B, D, F, H), respectively. Expression of notch1b was not seen at 43 hpf (I) but initiated at 46 hpf (K) in the AVC of control embryos. 100 mg/l nitrite exposure from 10 hpf abolished notch1b expression in the AVC of embryos at 46 hpf (L).
