Fig. 4

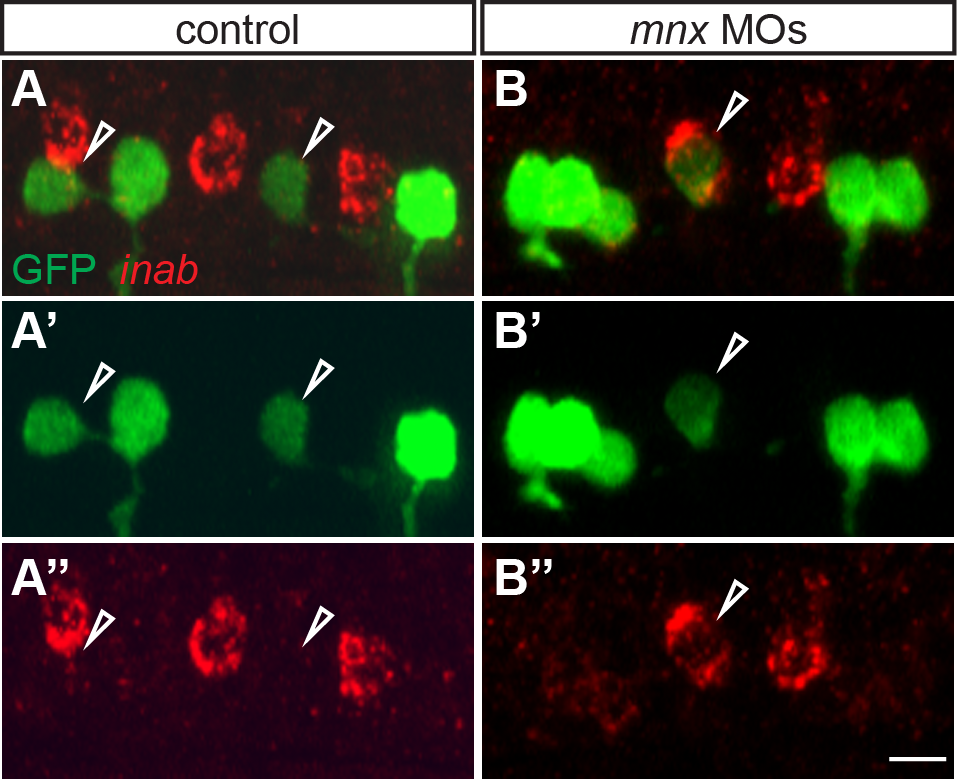

inab is expressed in MiP-CaP hybrids generated by Mnx protein knockdown.
(A–B) Z-projections of confocal stacks of control and Mnx MO-injected nrp1a:GFP embryos labeled with inab riboprobe and anti-GFP antibody. At 26 hpf, inab is not expressed in GFP+ MiP MNs in control embryos (arrowheads, A-A3), but is expressed in a small percentage of GFP+ MiP MNs in MO-injected embryos (arrowhead, B-B3). Scale bar, 10 μm.
