ZFIN Image: Ton et al., 2013, Fig. 7


Figure Caption

Fig. 7

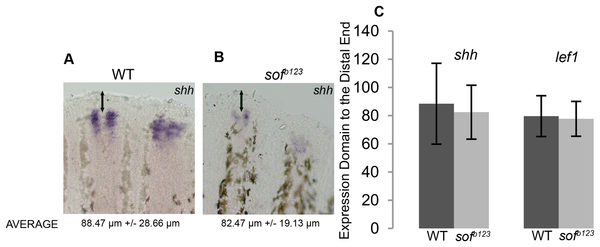

Reduced growth rate of sof ^b123 mutants does not influence patterning of gene expression.

(A) Whole mount ISH of shh on WT fins (A) and on sof ^b123 fins (B). (C) The distance of expression of shh and lef1 to the distal end of the fin is not influenced by the reduced growth rate of sof ^b123 since the distances of the expression domains for shh and lef1 are not statistically different by the student’s t-test (p>0.05). The p-value for comparison of the shh domain was p = 0.19. The p-value for the comparison of the lef1 domain was p = 0.30. Arrows identify the region of the fin that was measured, from the distal expression domain to the distal end of the fin. Error bars represent the standard deviation.

Figure Data

Expression / Labeling details
