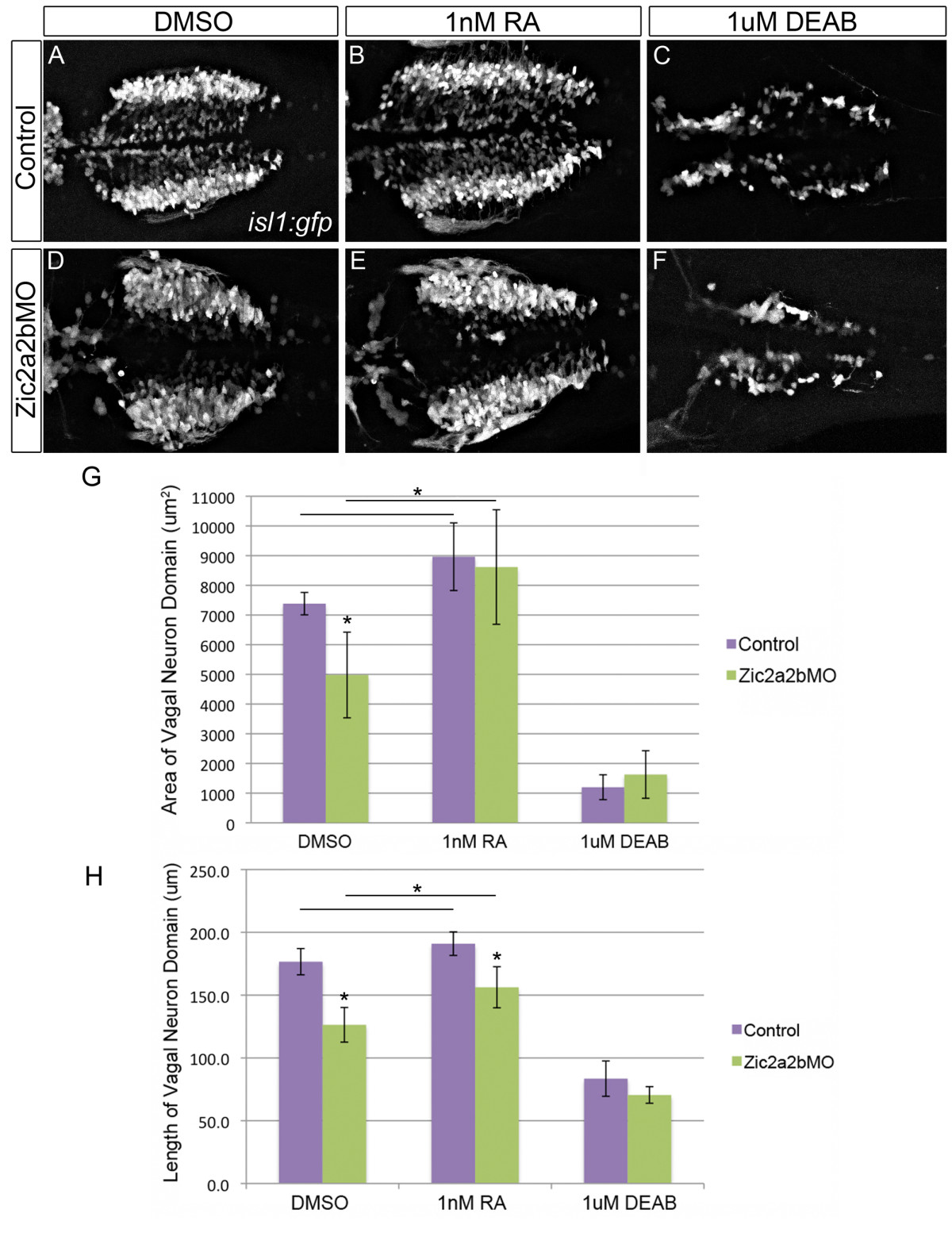

Fig. 10
Vagal neuron domain in Zic2a and Zic2b morpholino injected embryos is partially rescued with low doses of RA. Dorsal views of the vagal motor neurons in 48 hpf Tg(isl1:eGFP) embryos that were injected with p53 morpholino (A-C) or Zic2a;Zic2b and p53 morpholinos (D-F), and treated with 1% DMSO (A, D), 1 nM RA (B, E), or 1 μM DEAB (C, F). Quantification of vagal motor neuron domain area (G) demonstrates that Zic2a/2b depletion causes a statistically significant reduction in domain size, which is rescued by treatment with retinoic acid. Quantification of vagal neuron domain length (H) gives similar results, with a statistically significant reduction upon Zic2 depletion, which could again be counteracted by retinoic acid addition. Statistical significance calculated by ANOVA and Tukey’s HSD post-hoc test (*p-value d 0.01).
