Figure Caption

Fig. 2

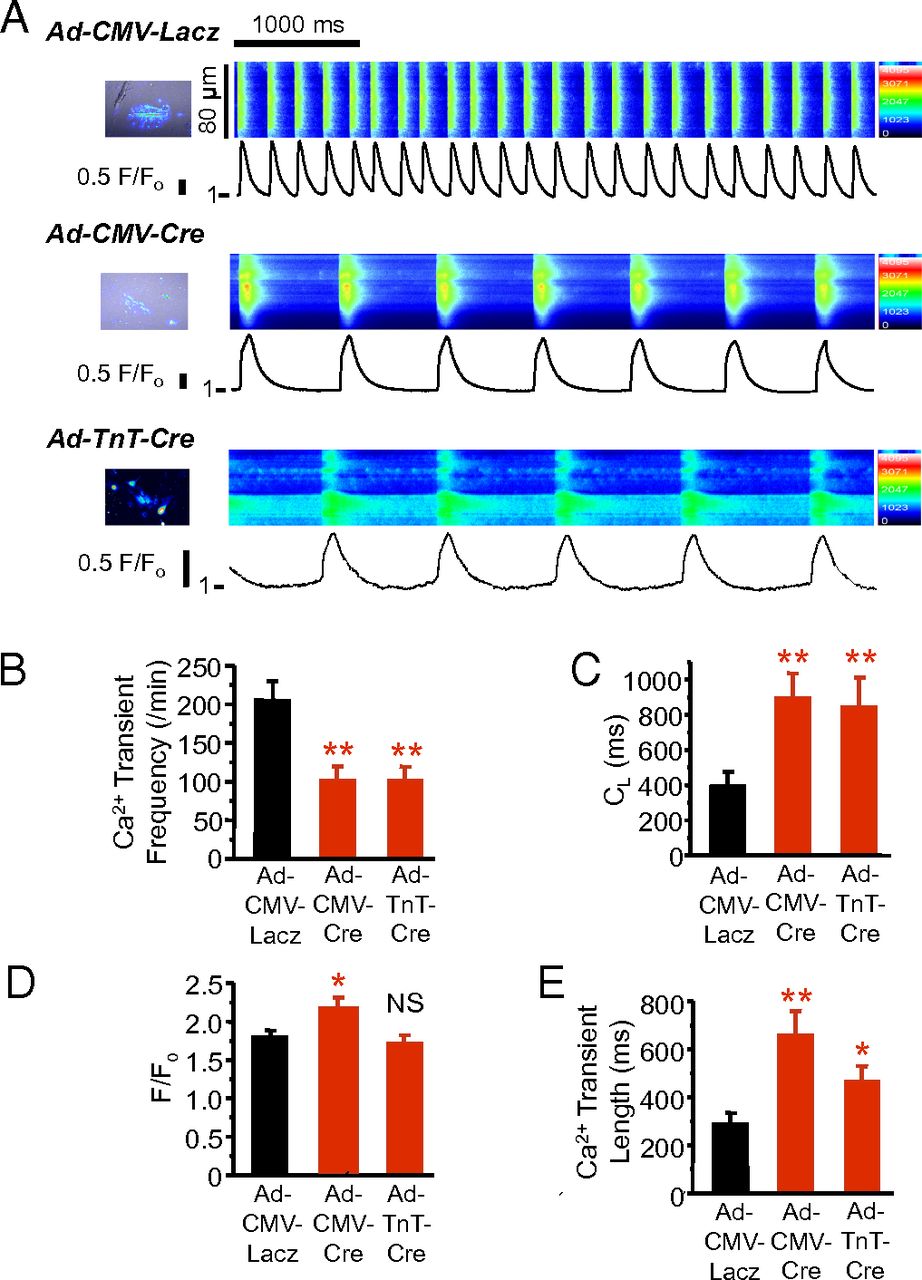

Trpm7 deletion in embryonic myocardium disrupts cardiac automaticity in vitro. (A) Ca²⁺ transients measured by high-speed line-scanning confocal microscopy in Trpm7^fl/fl EVM 4–5 d after transduction with Ad-CMV-Lacz (Top), Ad-CMV-Cre (Middle), and Ad-TnT-Cre (Bottom). (B) Mean Ca²⁺ transient frequency, (C) cycle length, C_L, (D) peak Ca²⁺ transients, F/F_o, and (E) Ca²⁺ transient length in Ad-CMV-Lacz, Ad-CMV-Cre, and Ad-TnT-Cre treated Trpm7^fl/fl EVMs. *P < 0.05, **P < 0.01.
