Figure Caption

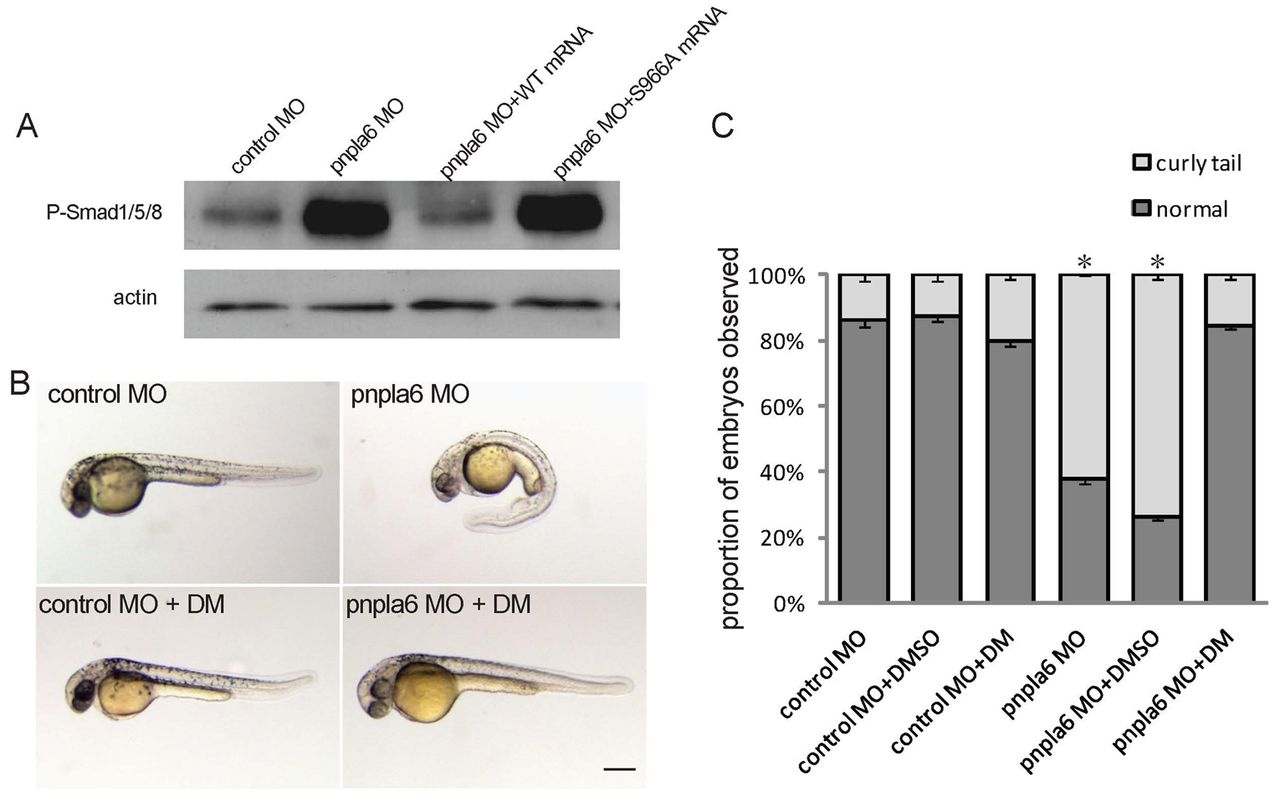

Fig. 7 Upregulation of BMP signaling in pnpla6 MO morphants. (A) Western blot of phosphorylated Smad1/5/8 levels at 24 hpf in four groups of embryos, as described for Fig. 3J. β-actin was used as a loading control. (B) Dorsomorphin (DM) treatment rescued the curly tail phenotype of pnpla6 MO morphant embryos. Scale bar: 200 μm. (C) The curly tail phenotype of pnpla6 MO was rescued by inhibition of the BMP signal pathway with 6 μmol/l DM; *P<0.001 compared with control MO group.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Dis. Model. Mech.
