ZFIN Image: Hegarty et al., 2013, Fig. S6


Figure Caption

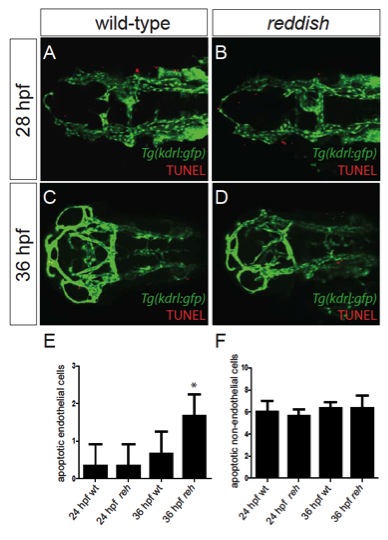

Fig. S6 Endothelial survival is compromised in reh mutants owing to increased apoptosis by 36 hpf. (A-D) Confocal projections of Tg(kdrl:gfp) wild-type (wt) and reh mutant zebrafish that were TUNEL stained (red) reveal that (D) reh endothelial cells exhibit increased apoptosis at 36 hpf when compared with (C) wild-type endothelial cells. However, there appeared to be no significant difference in endothelial cell death between (A) wild-type and (B) reh embryos at 28 hpf. (E,F) The number of apoptotic cells observed per high-power field for each condition. Mean+s.e.m. Student’s t-test, *P<0.1 (n=15 reh and wild-type zebrafish).

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
