Fig. 1
- ID
- ZDB-IMAGE-130326-31
- Genes
- Publication
- Djiotsa et al., 2012 - Pax4 is not essential for beta-cell differentiation in zebrafish embryos but modulates alpha-cell generation by repressing arx gene expression
- All Figures
- Figures for Djiotsa et al., 2012
|
Figure Caption

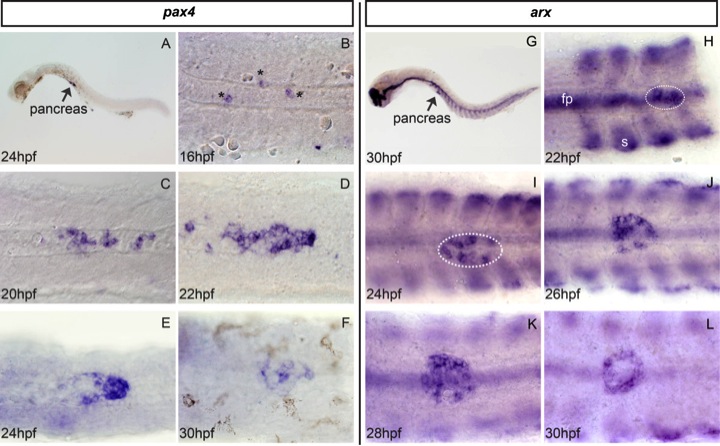

Fig. 1 pax4 and arx are expressed in the pancreatic dorsal bud in zebrafish embryos. Whole-mount in situ hybridization (WISH) performed with pax4 (A – F) and arx (G – L) probes at different developmental stages (hpf : hours post-fertilization). (A and G) Lateral view, anterior to the left, original magnification 40x. (B – F and H - L) Ventral views, anterior to the left of yolk-free embryos, original magnification 400x. Dotted lines : dorsal pancreatic bud; fp: floor plate; s: somites.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ BMC Dev. Biol.
