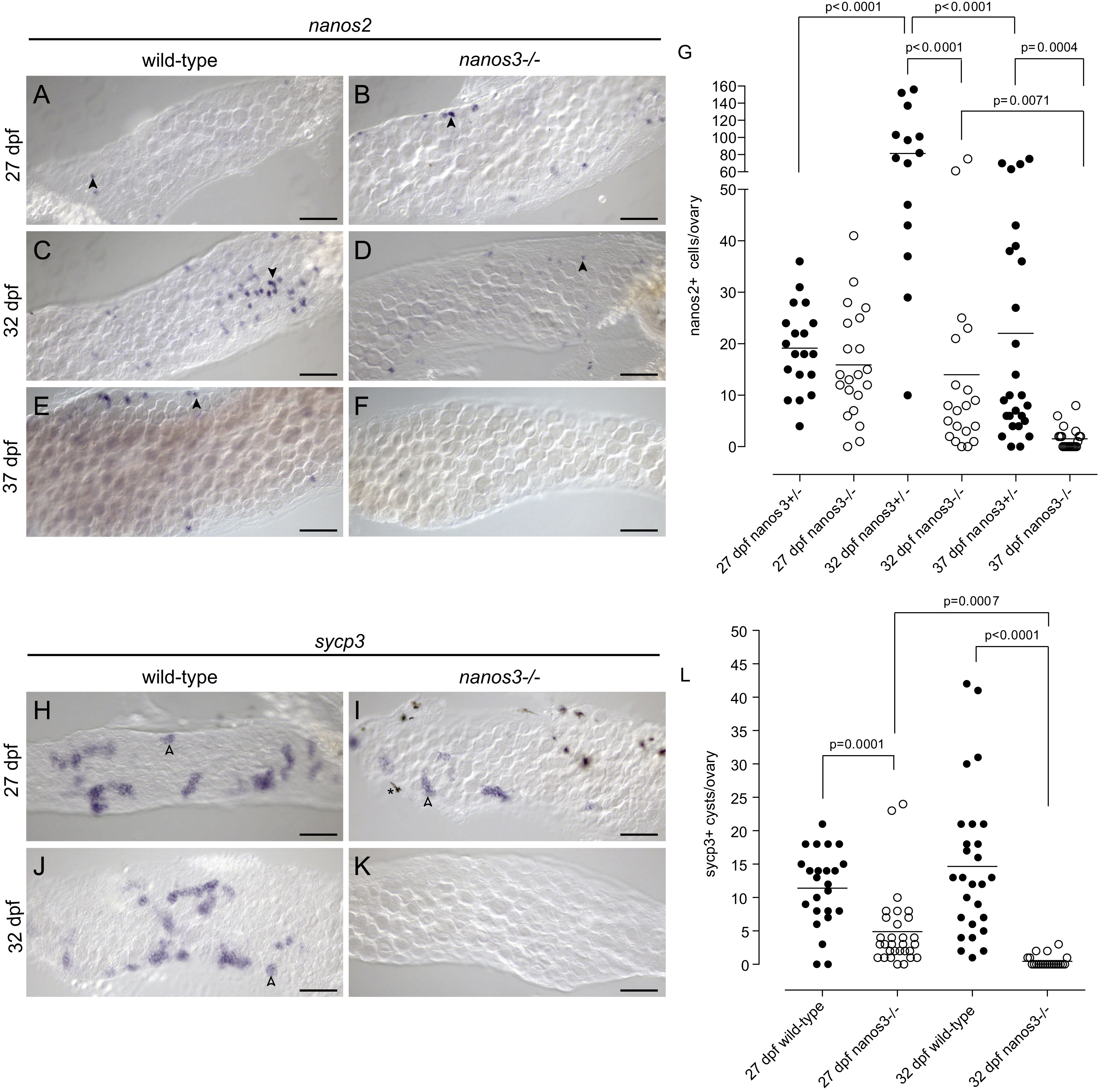

nanos2+ and sycp3+ cells are not maintained in nanos3 mutant juvenile ovaries. (A–G) Analysis of nanos2-expressing cells by in situ hybridization in wild-type and nanos3 mutant 27–37 dpf ovaries. nanos2+ cells are easily detected in wild-type and mutant ovaries at 27 dpf. (A and B). At 32 dpf, nanos2+ cells are easily detectable in both wild-type and mutant ovaries, but are more abundant in wild-type (C-D). However, by 37 dpf nanos2+ cells are not detected in mutants, but are present in wild-type ovaries (E and F) Arrowheads identify representative nanos2-expressing cells in A–E. (G) Quantification of nanos2+ cells per ovary in wild-type and mutant ovaries. (H–L) Analysis of sycp3 expressing germ cell cysts by in situ hybridization in wild-type and mutant ovaries from 27–37 dpf. Actively differentiating sycp3 expressing germ cell cysts are present in both wild-type and mutant tissue at 27 dpf (H and I). By 32 dpf sycp3+ cysts cannot be detected in mutant ovaries (J and K). Arrowheads identify representative sycp3 expressing germ cell cysts (blue) in H–J, while an asterisk in I identifies a representative melanocyte pigment cell (black). (L) Quantification of sycp3+ cysts per ovary in wild-type and mutant ovaries. All images are from whole mount preparations. Scale bars: 50 μm. p-values indicate statistically significant differences.
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Developmental Biology, 374(2), Beer, R.L., and Draper, B.W., nanos3 maintains germline stem cells and expression of the conserved germline stem cell gene nanos2 in the zebrafish ovary, 308-318, Copyright
(2013) with permission from Elsevier.
Full text @ Dev. Biol.
