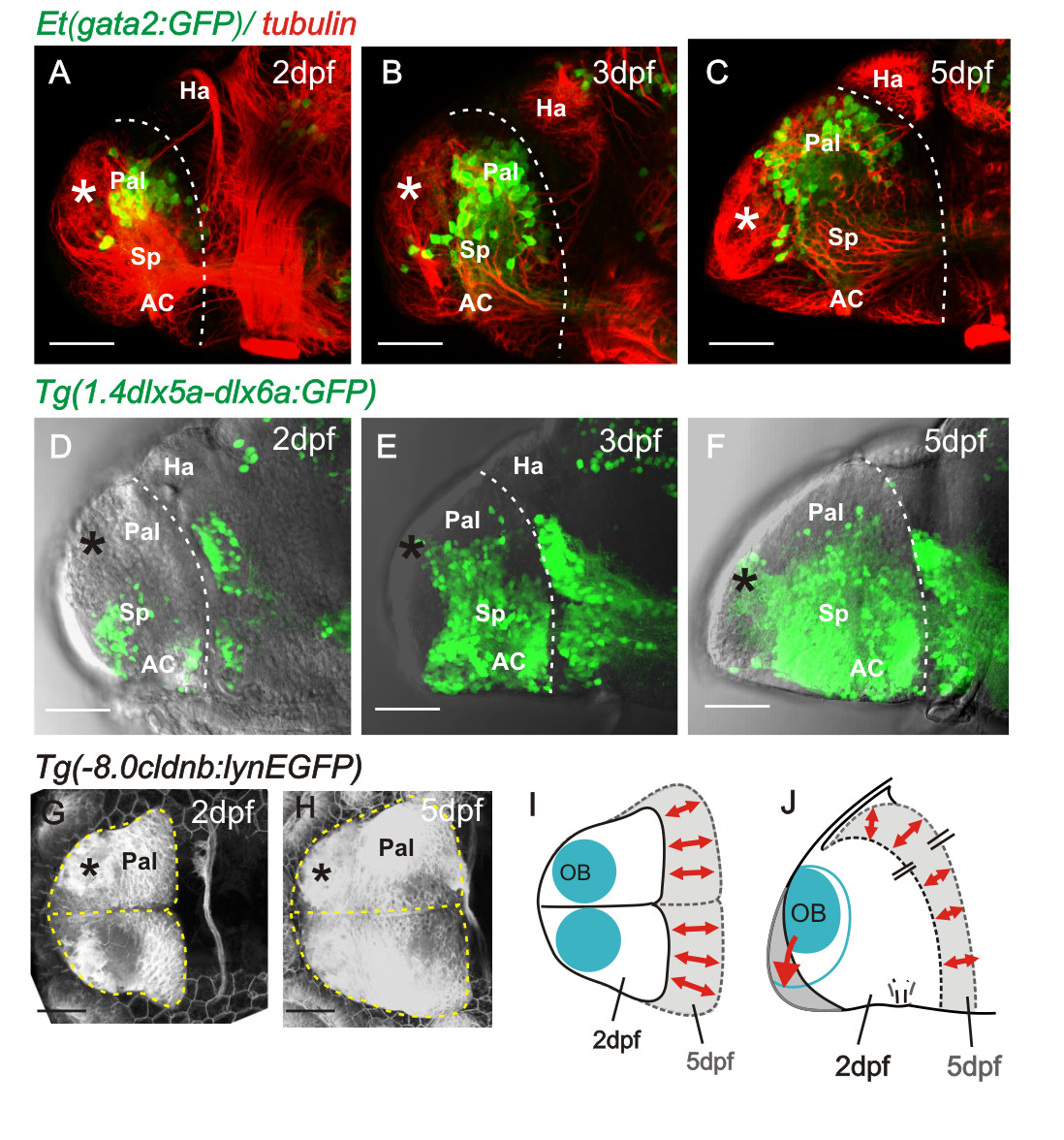

Fig. 4 Pallial and subpallial expansion between 2 dpf and 5 dpf. A to C. Lateral views of 2, 3, and 5 day telencephali expressing [Et(gata2:GFP)^bi105] in pallial neurons whose numbers expand into the region between the OB (asterisk) and the diencephalic habenulae. D to F. Lateral views of 2, 3, and 5 day telencephali expressing Tg(1.4dlx5a-dlx6a:GFP)^ot1 in subpallial cells, whose numbers expand greatly between days 2 and 5. G and H. Dorsal views of telencephalon at 2 and 5 days labelled with the transgene 8.0cldnb:lynEGFP. Positions of olfactory bulbs are superimposed and the outlines of the telencephali are overlaid in I (dorsal view) and J (lateral view), to illustrate that most growth occurs along the anteroposterior axis but that the mediolateral dimensions alter relatively little. AC: anterior commissure; Hab: habenula; OB: olfactory bulb; Pal: pallium; Sp: subpallium.
