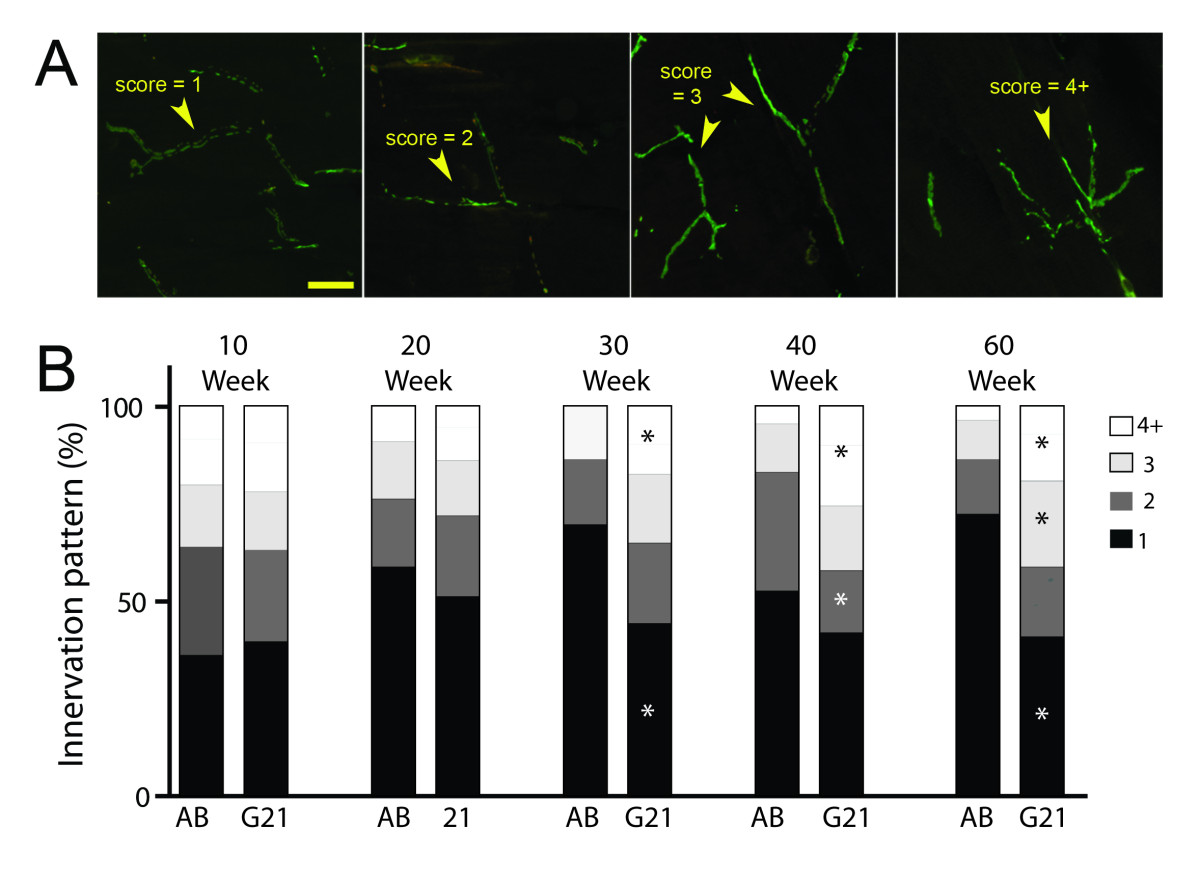

Fig. 5 Neuromuscular innervation characterization in transgenic ALS zebrafish. Analysis of innervation patterns in 10-60 week old control AB and transgenic G93A-SOD1-GFP zebrafish. (A) Axons are scored as long (score = 1), moderately branched (scores = 2 or 3) or complex (score = 4+), as demonstrated in representative images. (B) Quantification of scoring results in 10-60 week old control AB and transgenic G93A-SOD1-GFP zebrafish. * P < 0.01 compared to age-matched AB controls.
