ZFIN Image: Khan et al., 2012, Fig. 7


Figure Caption

Fig. 7

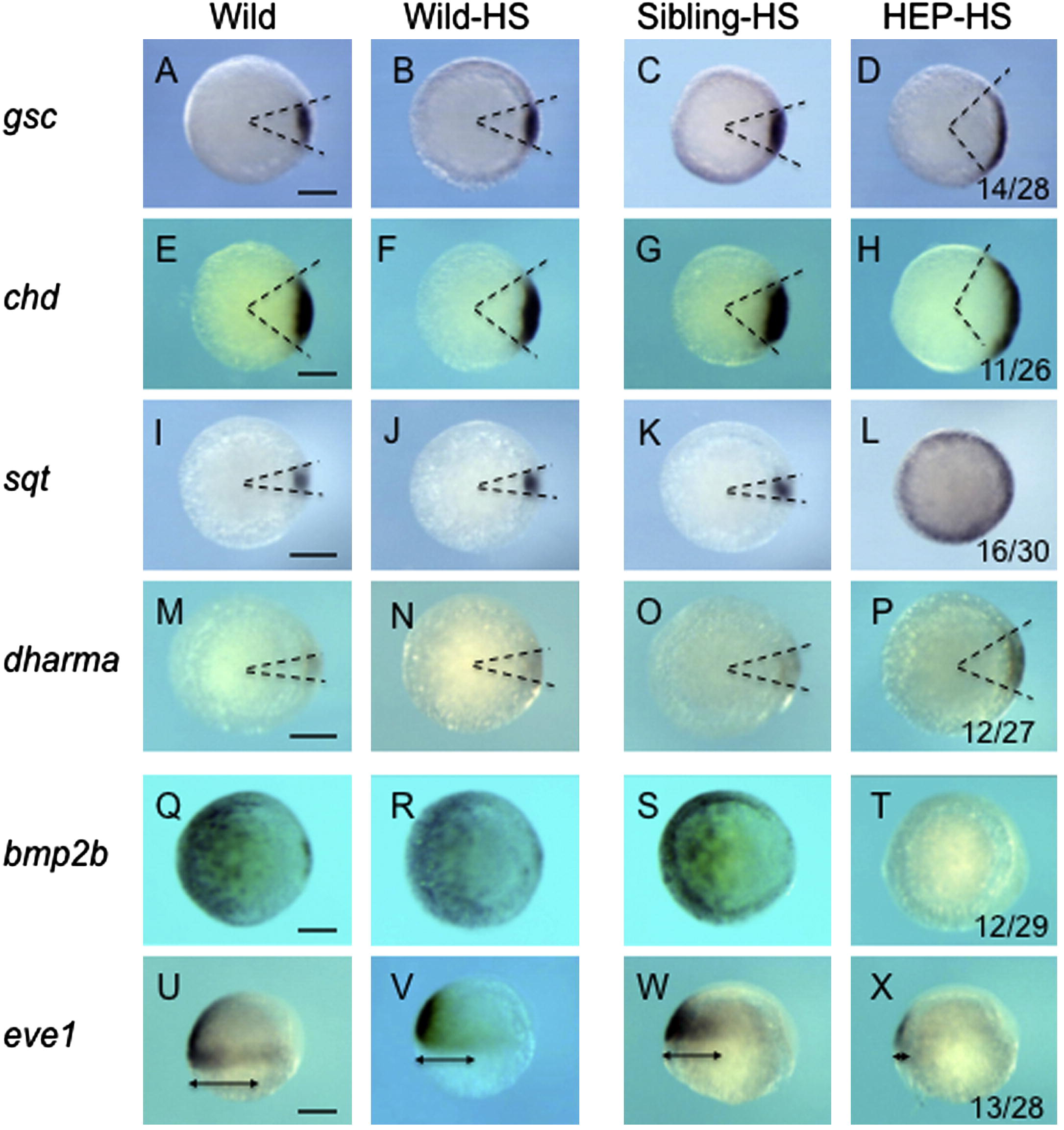

Effects of HEP induction at the sphere stage on the expression of dorsoventral patterning genes. Embryos from crosses of wild-type and HEP^+/- transgenic (Tg) fish were exposed to heat shock at the sphere stage for 1 h, allowed to develop at a lower temperature to 50% epiboly, and then examined for the expression of DV patterning genes (right two columns). Embryos in the third column showed normal patterns (Sibling-HS), whereas those in the rightmost column showed expanded (D, H, L, P) or reduced (T, X) expression (HEP-HS). The numbers of embryos with abnormal expression and total numbers of embryos examined are shown at the bottom of the respective panels in the HEP-HS column. For the control, gene expression was examined in parallel in wild-type embryos that were untreated (left column, Wild) or treated with heat shocks (second column, Wild-HS). Scale bar, 200 μm.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Mechanisms of Development, 129(9-12), Khan, A., Nakamoto, A., Okamoto, S., Tai, M., Nakayama, Y., Kobayashi, K., Kawamura, A., Takeda, H., and Yamasu, K., Pou2, a class V POU-type transcription factor in zebrafish, regulates dorsoventral patterning and convergent extension movement at different blastula stages, 219-235, Copyright (2012) with permission from Elsevier. Full text @ Mech. Dev.
