Fig. S4

ID: ZDB-IMAGE-120816-12
Publication: Lim et al., 2012 - Dorsal activity of maternal squint is mediated by a non-coding function of the RNA
All Figures: Figures for Lim et al., 2012


Figure Caption

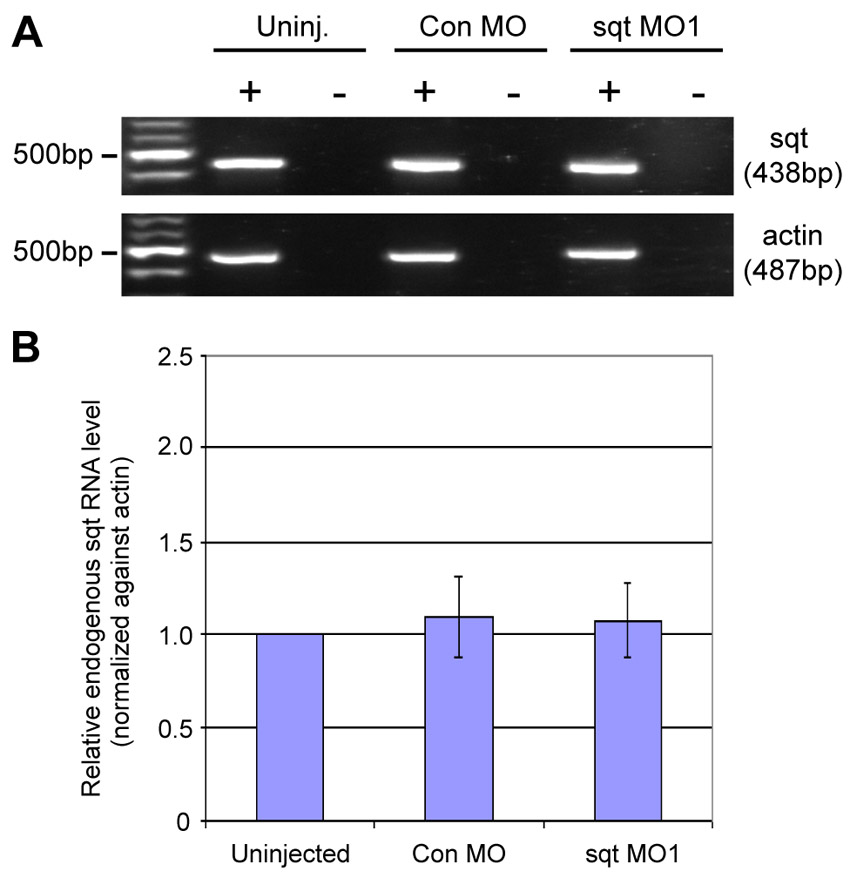

Fig. S4 sqtMO1 does not affect the stability of sqt RNA. (A) Semi-quantitative RT-PCR analysis of endogenous sqt RNA in uninjected, Con MO-injected or sqtMO1-injected embryos at the 8-cell stage shows that sqt RNA levels remain uniform. (B) Quantitative real-time RT-PCR to detect endogenous sqt RNA in uninjected embryos, embryos injected with Con MO and embryos injected with sqtMO1 shows that sqt RNA levels remain unchanged at least until the 8-cell stage. Bar chart shows the relative expression of sqt RNA, normalized against actin RNA levels. The experiment was performed three times; error bars indicate the s.d. between independent experiments.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
