Fig. S6 Early vascular pattern is normal in bbh mutants and α v β8 double morphants.

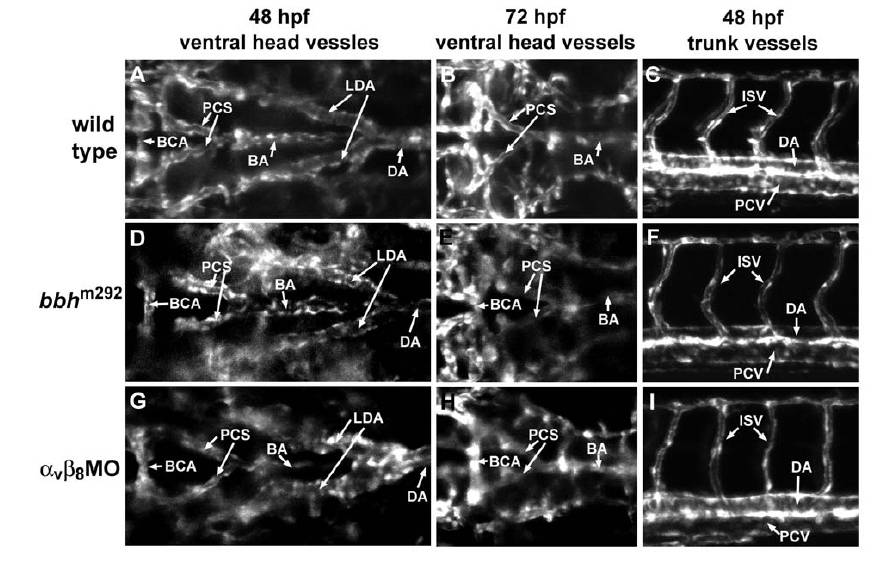

Confocal images were taken in the ventral head at 48 hpf (A, D, G) and 72 hpf (B, E, H), and the lateral midtrunk at 48 hpf (C, F, I). The basic vascular pattern is similar in wild types (A, B, C), bbh mutants (D, E, F) and α v β8 double morphants (G, H, I). BCA: basal communicating artery; PCS: posterior communicating segment; BA: basilar artery; LDA: lateral dorsal aorta; DA: dorsal aorta; ISV: intersegmental vessel; PCV: posterior cardinal vein.
