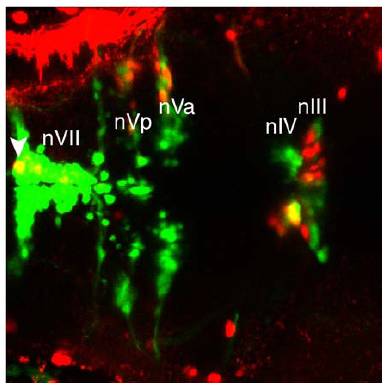

Fig. S2 Retrograde dye tracing from the orbit labels nIII and nIV, (related to Figure 4).
Confocal z-projection of the midbrain and hindbrain of a 6 dpf Tg(isl1:GFP)^rw0 transgenic larva (GFP expression shown in green) following retrograde dye tracing from the orbit (red). Extra-ocular motoneurons in both the oculomotor and trochlear motor nuclei, which innervate eye muscles mediating torsional eye rotations, were labelled. In addition, in this specimen, one abducens motoneuron (ventral to nVII, arrowhead) as well as several trigeminal motoneurons were back-filled. Dorsal view, anterior right. Abbreviations: nIII, oculomotor nucleus; nIV, trochlear nucleus; nVa, nVp, anterior and posterior clusters of trigeminal motor neurons.
