Fig. 4

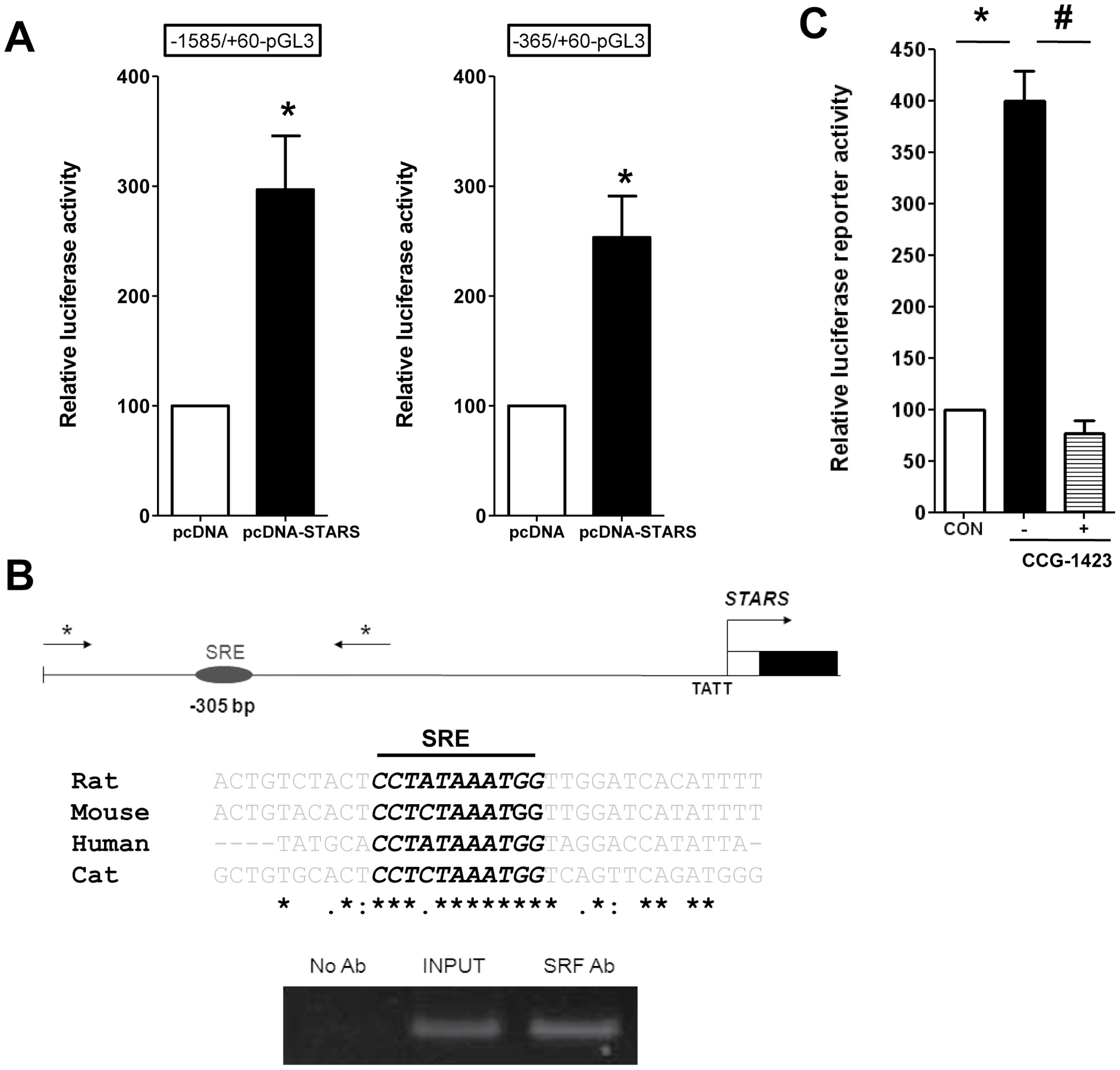

Binding of SRF to the STARS promoter.

A. STARS expression activates reporter gene constructs containing the conserved serum response element (SRE). Luciferase activity is shown for two constructs upstream of the STARS transcription start site. B. Chromatin immunoprecipitation assays were performed with formaldehyde cross-linked chromatin isolated from feline adult cardiomyocytes. Asterisk (*) denotes PCR primer locations. Immunoprecipitations were performed without primary antibody (No Ab) as a negative control, with anti-SRF antibody. Input DNA is also shown as a positive control. Similar results were observed in four independent experiments. C. The SRF inhibitor CCG-1423 (1 µM) abolished STARS −365/+60 promoter-reporter activity in H9c2 cells (n = 3 experiments, in triplicates).
