ZFIN Image: Shao et al., 2012, Fig. 5


Figure Caption

Fig. 5

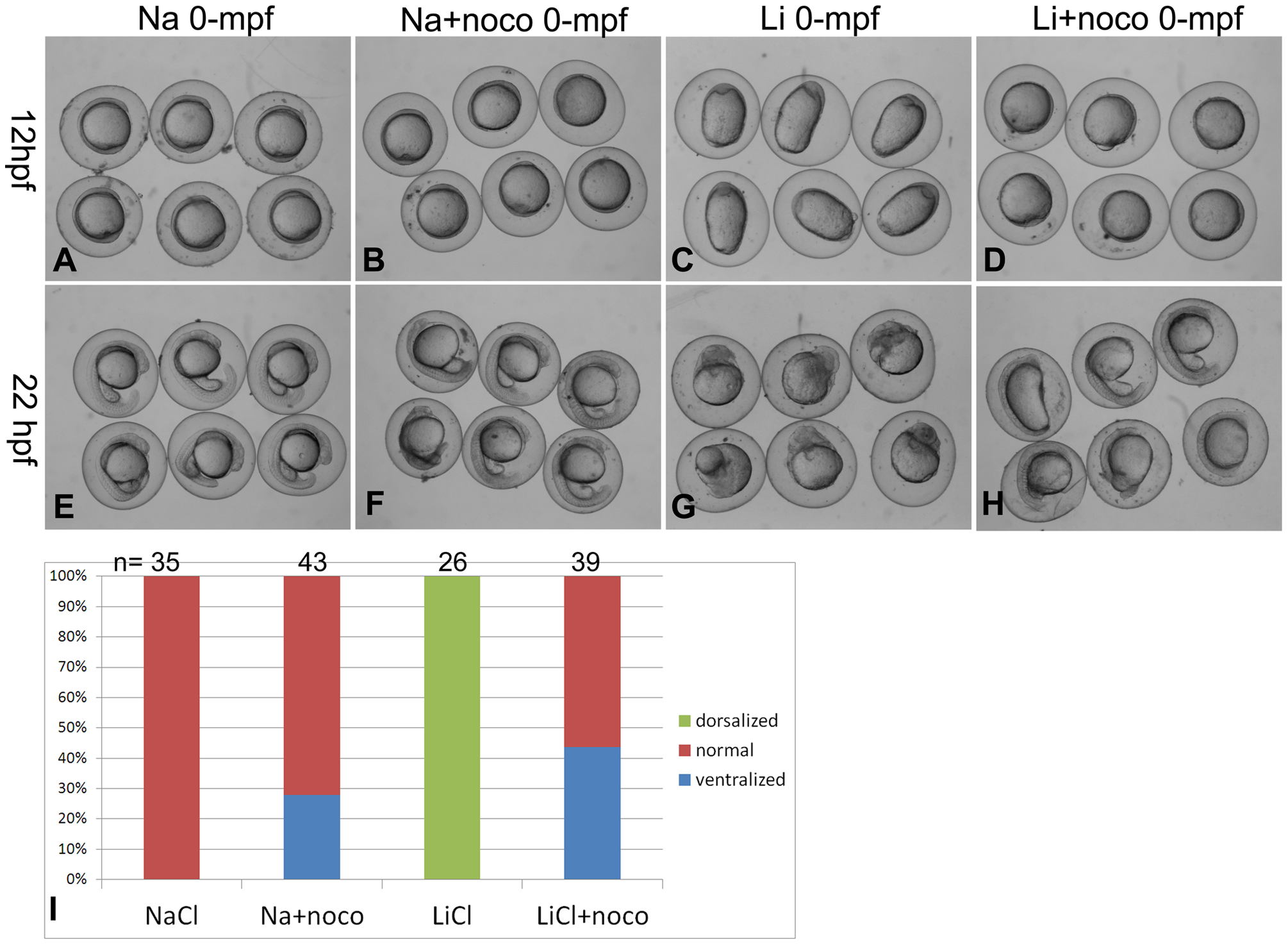

0-mpf nocodazole treatment reverses the dorsalizing effect of the 0-mpf lithium treatment.

The 0-mpf embryos were treated with 0.35 M LiCl solution in the absence or presence of 0.1 μM nocodazole for 5 min, and then observed at 12 hpf and 22 hpf. 0 35 M NaCl treatment served as control. (A and E) 0-mpf NaCl treated embryos at 12 hpf (A) and 22 hpf (E). (B and F) 0-mpf NaCl and nocodazole co-treated embryos at 12 hpf (B) and 22 hpf (F). (C and G) 0-mpf lithium treated embryos at 12 hpf (C) and 22 hpf (G). (D and H) 0-mpf lithium and nocodazole co-treated embryos at 12 hpf (D) and 22 hpf (H). (I) Statistical data were obtained at 12 hpf for the experiment with embryo numbers on the top of each column.
