Fig. S7

ID: ZDB-IMAGE-120425-2
Publication: Sarmah et al., 2007 - A role for the inositol kinase Ipk1 in ciliary beating and length maintenance
All Figures: Figures for Sarmah et al., 2007


Figure Caption

Fig. S7

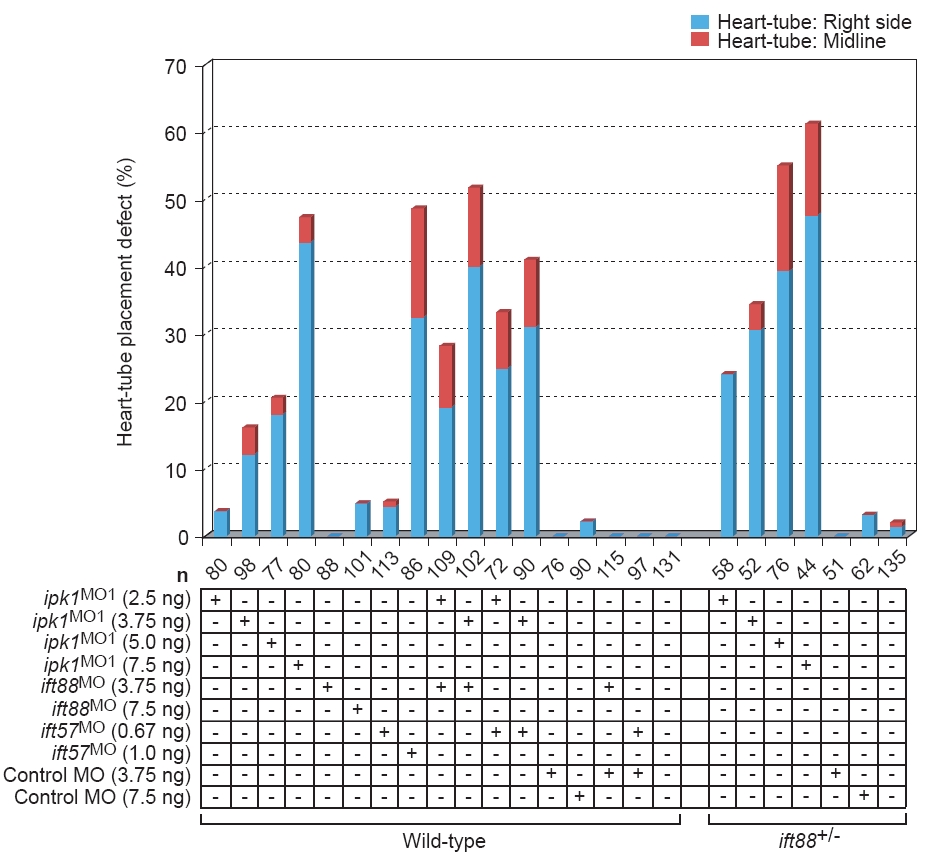

Codepletion of Ipk1 and either IFT88 or IFT57 synergistically perturbs LR asymmetry. Embryos obtained from crossing wild-type fish were injected with varying amounts of either single MO (ipk1^MO1, ift88^MO, ift57^MO, control MO) or a MO combination (ipk1^MO1 + ift88^MO, ipk1^MO1 + ift57^MO, control MO + ift88^MO, control MO + ift57^MO). On the other hand, embryos derived from crossing heterozygous ift88 (previously known as polaris or oval) mutant (ift88^+/-) fish were injected with varying amounts of either ipk1^MO1 or control MO. Scores on the heart-tube placement defect in embryos at 28 hpf from each treatment are presented as bar graphs.
