Fig. 3

ID

ZDB-IMAGE-120329-43

Genes

EGFP
meis1b

Publication

Royo et al., 2012 - Identification and Analysis of Conserved cis-Regulatory Regions of the MEIS1 Gene

All Figures

Figures for Royo et al., 2012


Figure Caption

Fig. 3

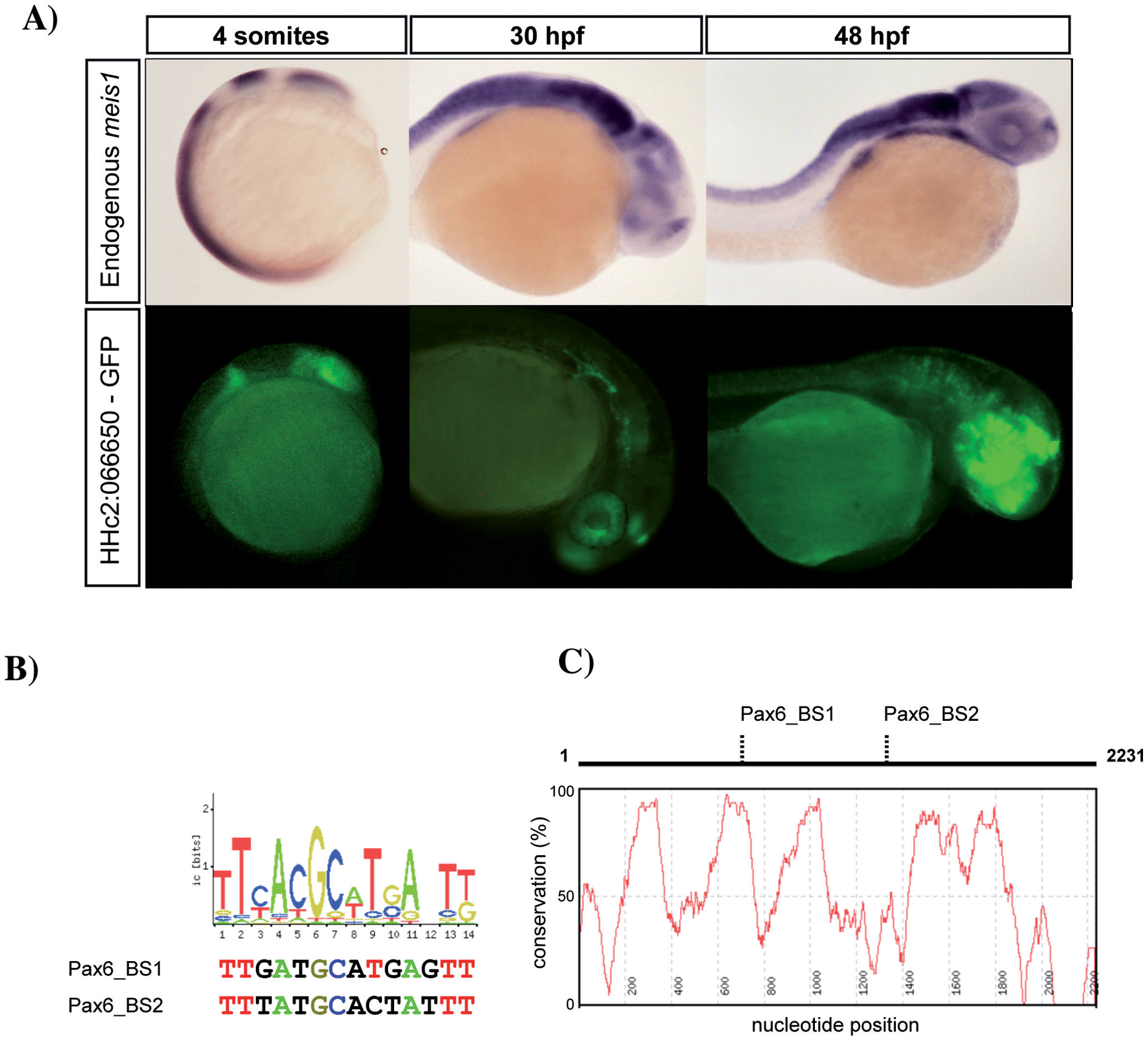

HCNR sequence analysis suggests novel meis1 upstream regulators.

(A) meis1 transcription, detected by in situ hybridization (upper panel) compared to GFP expression, driven by the HHc2:066650-GFP transgenic line (lower panel) at 12 (left), 24 (middle) and 30 hpf (right). Side views are shown. HHc2:066650 drives GFP expression in the eye primordium, the early hindbrain, the retina, the optic tectum and the olfactory bulb, which are meis1 expression domains. B) The analysis of the potential binding sites predicted by Jaspar highlights the presence of three potential Pax6 sites. Two of these sites contain a high degree of similarity with the consensus. (C) Pax6_Binding_Site1 also mapped to a microisland of ultraconservation when human and zebrafish orthologous regions were aligned.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS One
