ZFIN Image: Ni et al., 2011, Fig. 7


Figure Caption

Fig. 7

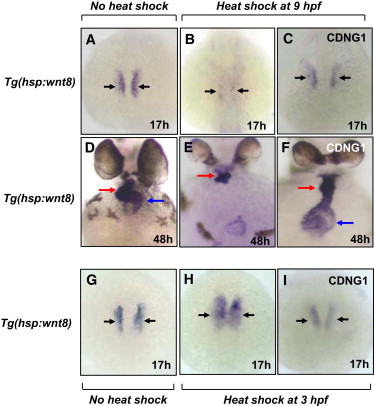

Cardionogen Rescues Wnt8-Induced Cardiac Phenotypes (A?C) cmlc2 expression in non-heat-shocked embryos (A), heat-shocked embryos (B), and CDNG1-treated heat-shocked embryos (C). Of 25 embryos, 23 were rescued. (D?F) Rescue of heart formation labeled by cmlc2 expression in CDNG1-treated heat-shocked embryos (F) compared to heat-shocked embryos (E) and non-heat-shocked embryos (D). Of 26 embryos, 25 were rescued. (G?I) Inhibition of cardiac expansion labeled by cmlc2 expression in CDNG1-treated heat-shocked embryos (I), compared to heat-shocked embryos (H) and non-heat-shocked embryos (G). Of 24 embryos, 21 were inhibited. Heat shock was administered at 38.5�C for 15 min at 3 hpf (H and I) and 9 hpf (B, C, E, and F). Black arrow, cardiomyocytes; red arrow, ventricle; blue arrow, atrium.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Chem. Biol.
