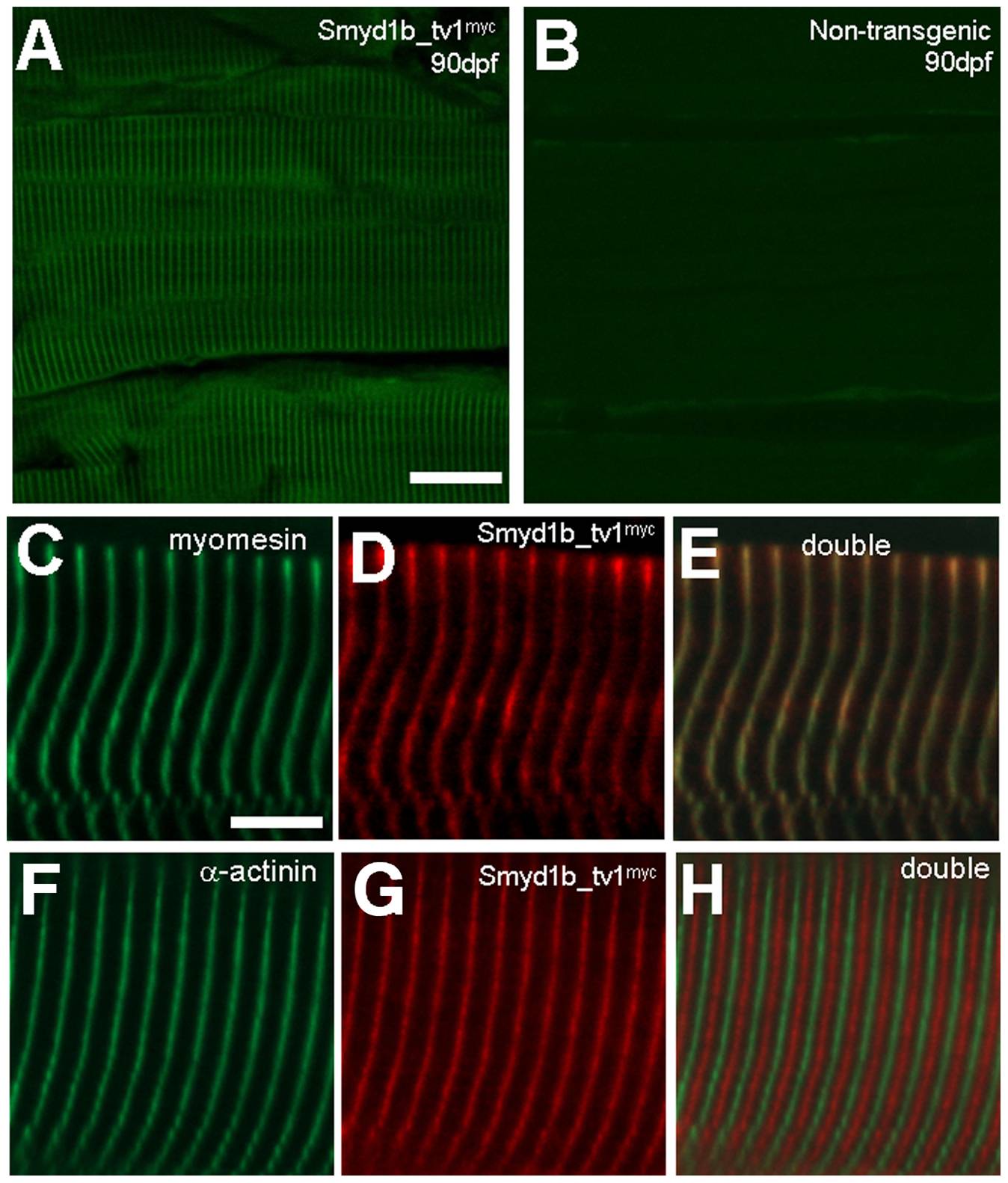

Fig. 7 Smyd1b_tv1myc is localized on the M-line of adult zebrafish skeletal muscles.
A and B. Immunostaining using anti-myc antibody shows the sarcomeric localization of Smyd1b_tv1myc on longitudinal sections of skeletal muscles from adult transgenic zebrafish expressing a myc-tagged Smyd1b_tv1 (A) or non-transgenic control (B). C–E. Double immunostaining with anti-myomesin and anti-myc antibodies shows the colocalization of Smy1b_tv1myc with myomesin on the M-lines. F–H. Double immunostaining with anti-α-actinin and anti-myc antibodies shows the non-overlapping localization of Smy1b_tv1myc with α- actinin. Scale bars: A = 22 μm. C = 6 μm.
