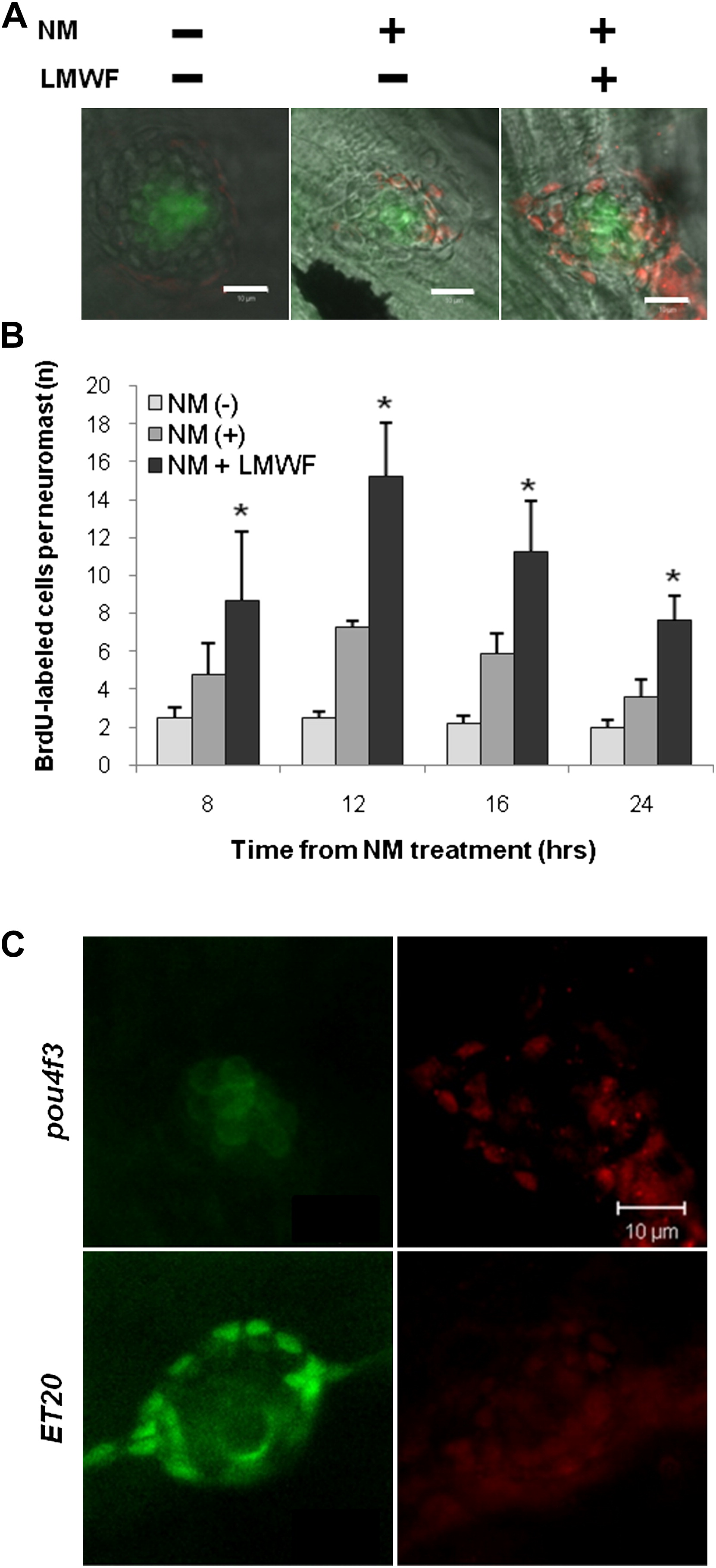

Fig. 6 BrdU incorporation after neomycin treatment in POU4f3::GFP larvae. (A) More cells are positive for BrdU (red color) in the LMWF group 12 h after neomycin treatment. (B) Summary of data from six experiments. Neuromast cell entry into the S-phase increased 8, 12, 16, and 24 h after neomycin treatment in LMWF treat group (p < 0.001, n = 10; compared to neomycin only). (C) BrdU-labeled cells (red dots) are generally located at the periphery of hair cells (green color) in POU4f3::GFP larvae and are centered over the peripheral supporting cells in ET20::GFP larvae. (NM; Neomycin, LMWF; low molecular weight foucoidan, * p < 0.05). (For interpretation of the references to colour in this figure legend, the reader is referred to the web version of this article.)
Reprinted from Hearing Research, 282(1-2), Moon, I.S., So, J.H., Jung, Y.M., Lee, W.S., Kim, E.Y., Kim, C.H., and Choi, J.Y., Fucoidan promotes mechanosensory hair cell regeneration following amino glycoside-induced cell death, 236-42, Copyright (2011) with permission from Elsevier. Full text @ Hear. Res.
