Figure Caption

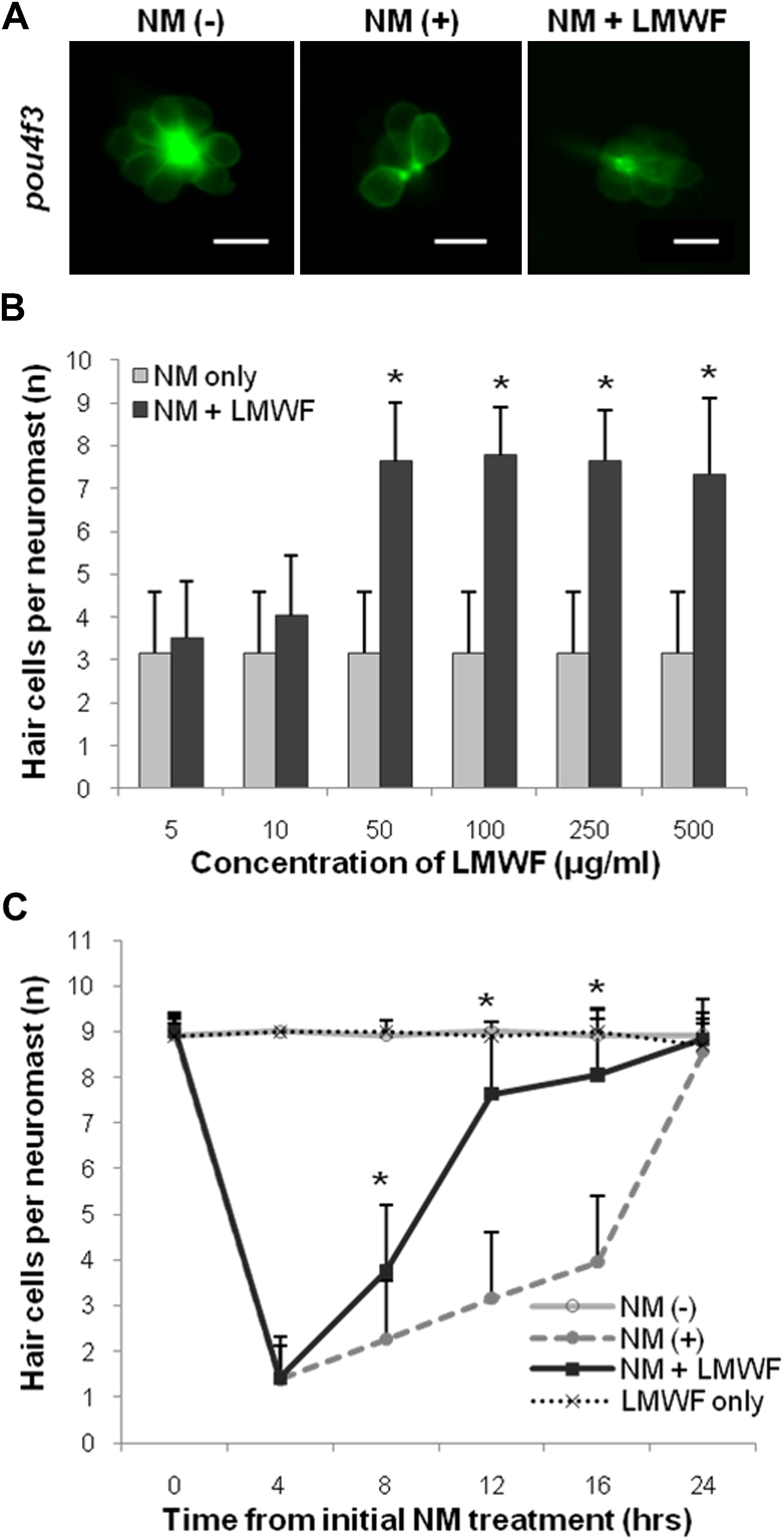

Fig. 4 The effect of LMWF on hair regeneration after neomycin-induced ototoxicity in POU4f3::GFP larvae. (A) A greater number of hair cells was observed in the neuromasts (P8) of LWMF-treated larvae 12 h after neomycin treatment. (B) Summarized data from six independent experiments. LMWF (50 μg/ml) significantly enhanced hair cell regeneration 12 and 16 h after neomycin treatment. (C) Concentrations of LMWF above 50 μg/ml had similar effects on hair cell regeneration (p < 0.001 compared to neomycin only).
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Hearing Research, 282(1-2), Moon, I.S., So, J.H., Jung, Y.M., Lee, W.S., Kim, E.Y., Kim, C.H., and Choi, J.Y., Fucoidan promotes mechanosensory hair cell regeneration following amino glycoside-induced cell death, 236-42, Copyright (2011) with permission from Elsevier. Full text @ Hear. Res.
